3ES Electrostatic Headphone Amplifier
3ES Electrostatic Headphone Amplifier
BTO (build to order), ships in 1–2 weeks
Limited time, FREE shipping worldwide
Designed and assembled in New York, USA
3-year limited warranty [learn more]
Have questions? Contact us
Have a trade-in? Learn more
Comments and Reviews
Overview

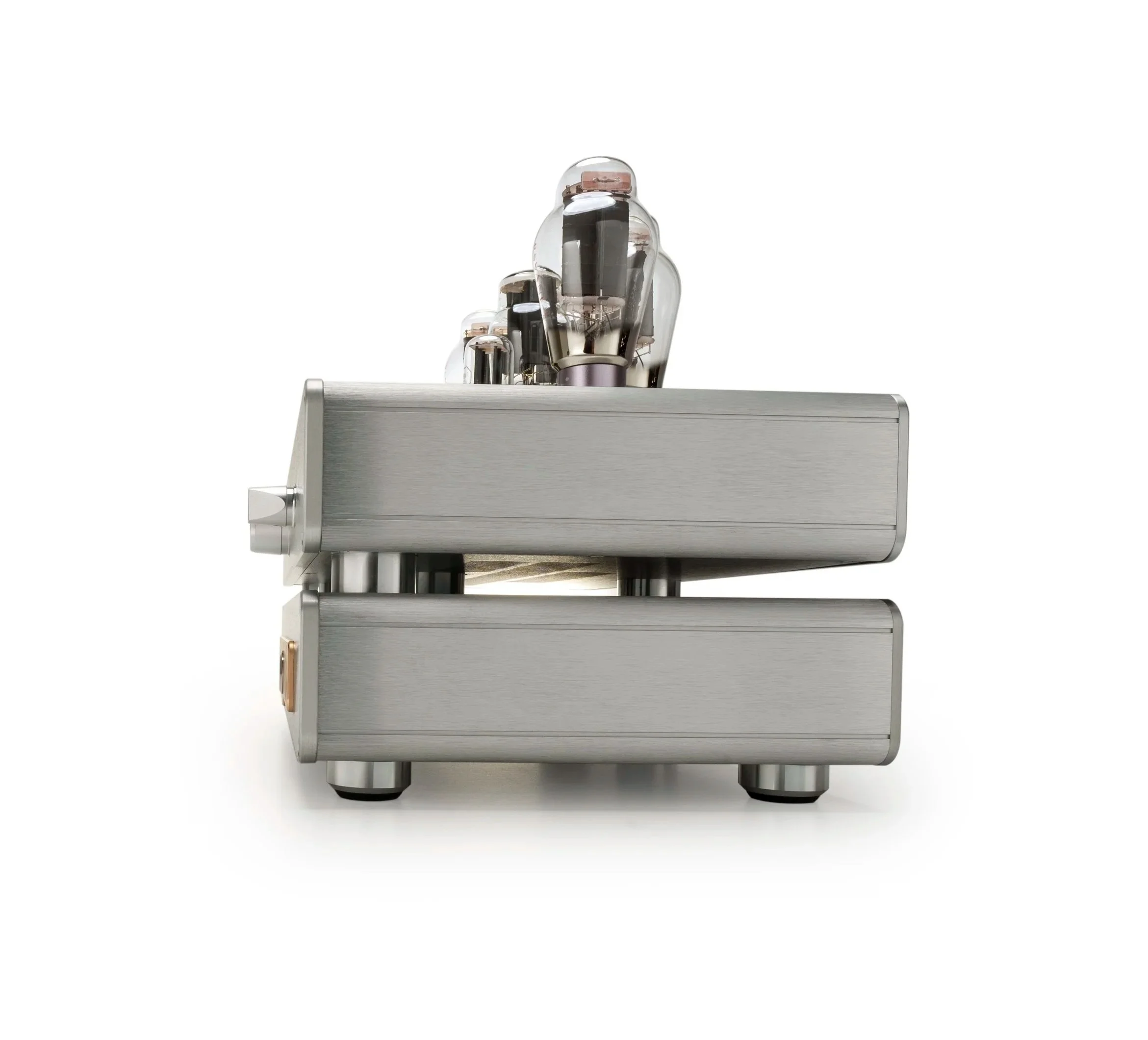

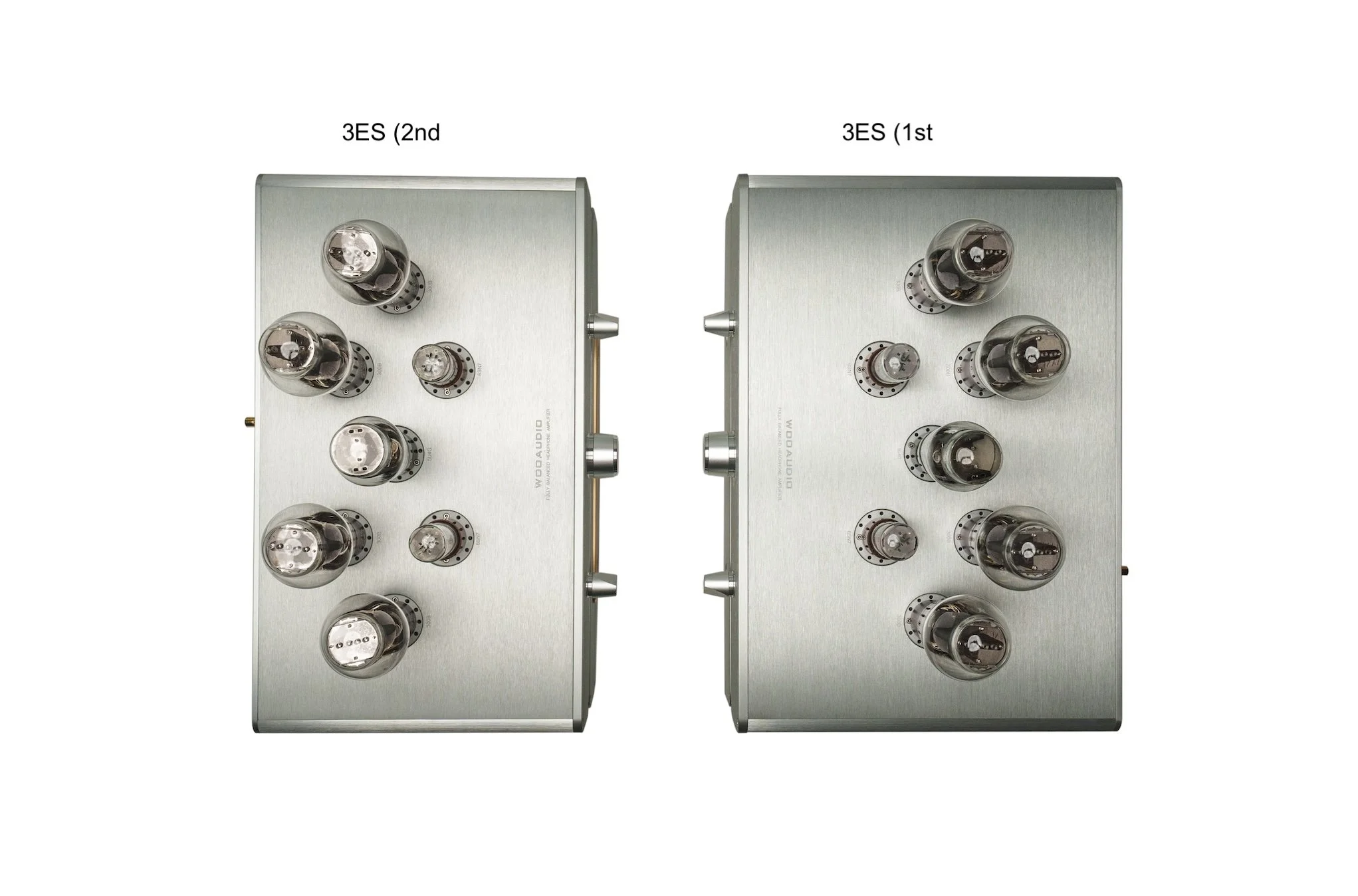

With over 10 years of experience in electrostatic amplifier designs. The all-new 3ES is our flagship electrostatic headphone amplifier and preamplifier. It shares the same architecture as our flagship WA33 dynamic headphone amplifier in a two-unit design where the top unit is an amplifier docking on the power supply using our internal coupling architecture (ICA) technology. The 3ES employs two 6SN7 driver tubes pushing four 300B power tubes as the output stage and one rectifier tube in the center of the amp. The new 3ES achieves the most ambitious dream in the audio world.
3ES Standard Edition. *Specifications and appearance are subject to change for improvement without notice.

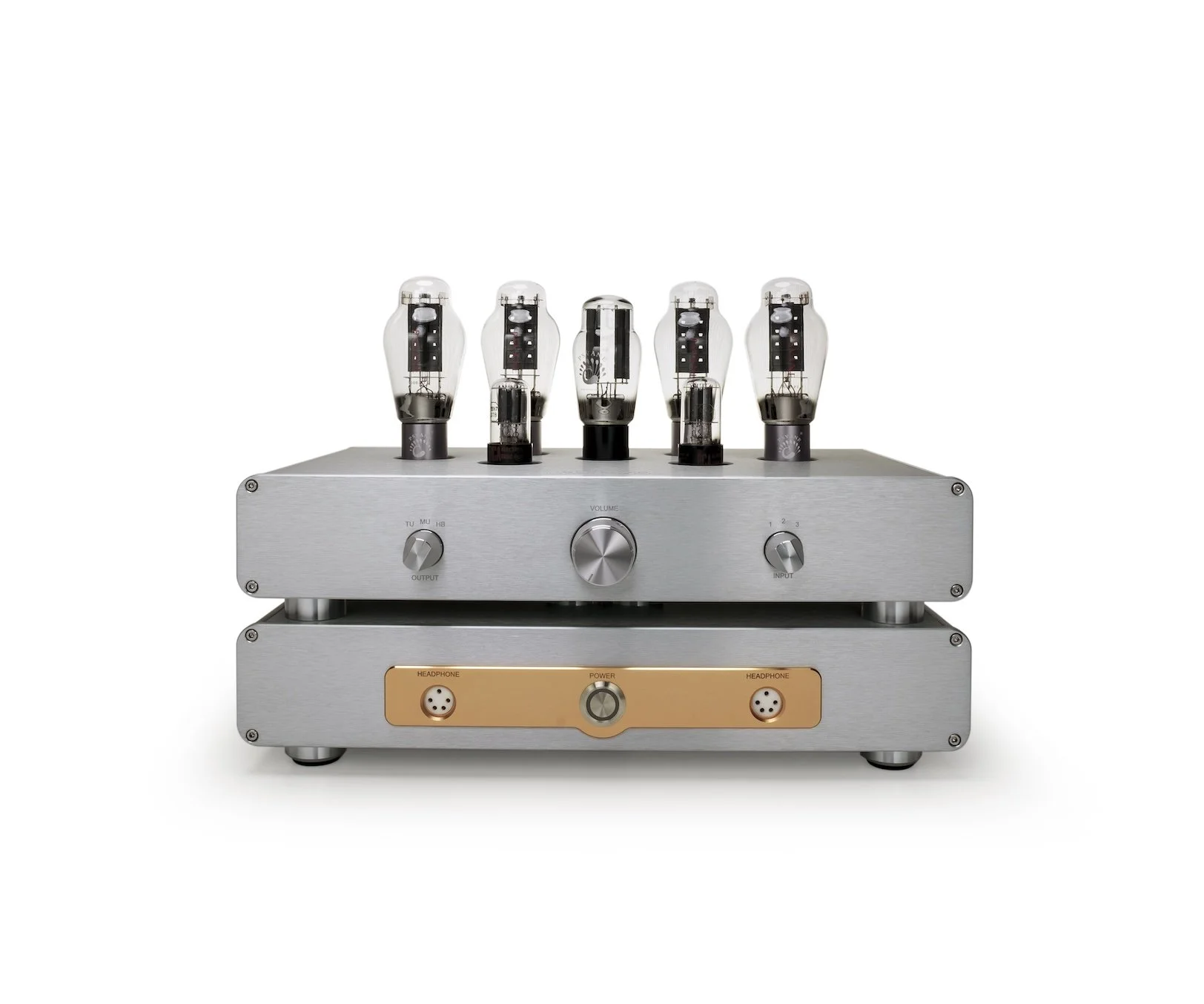

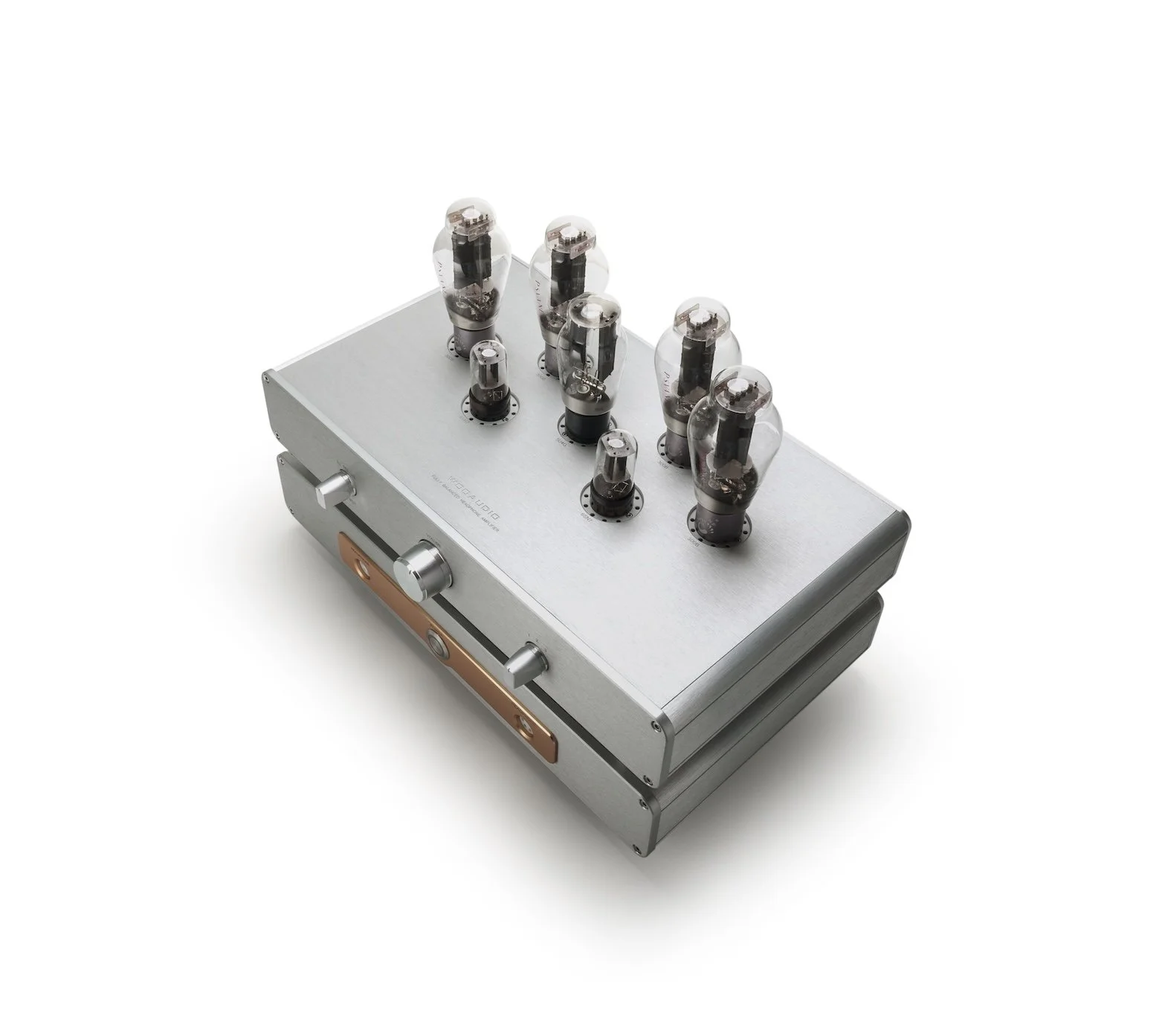

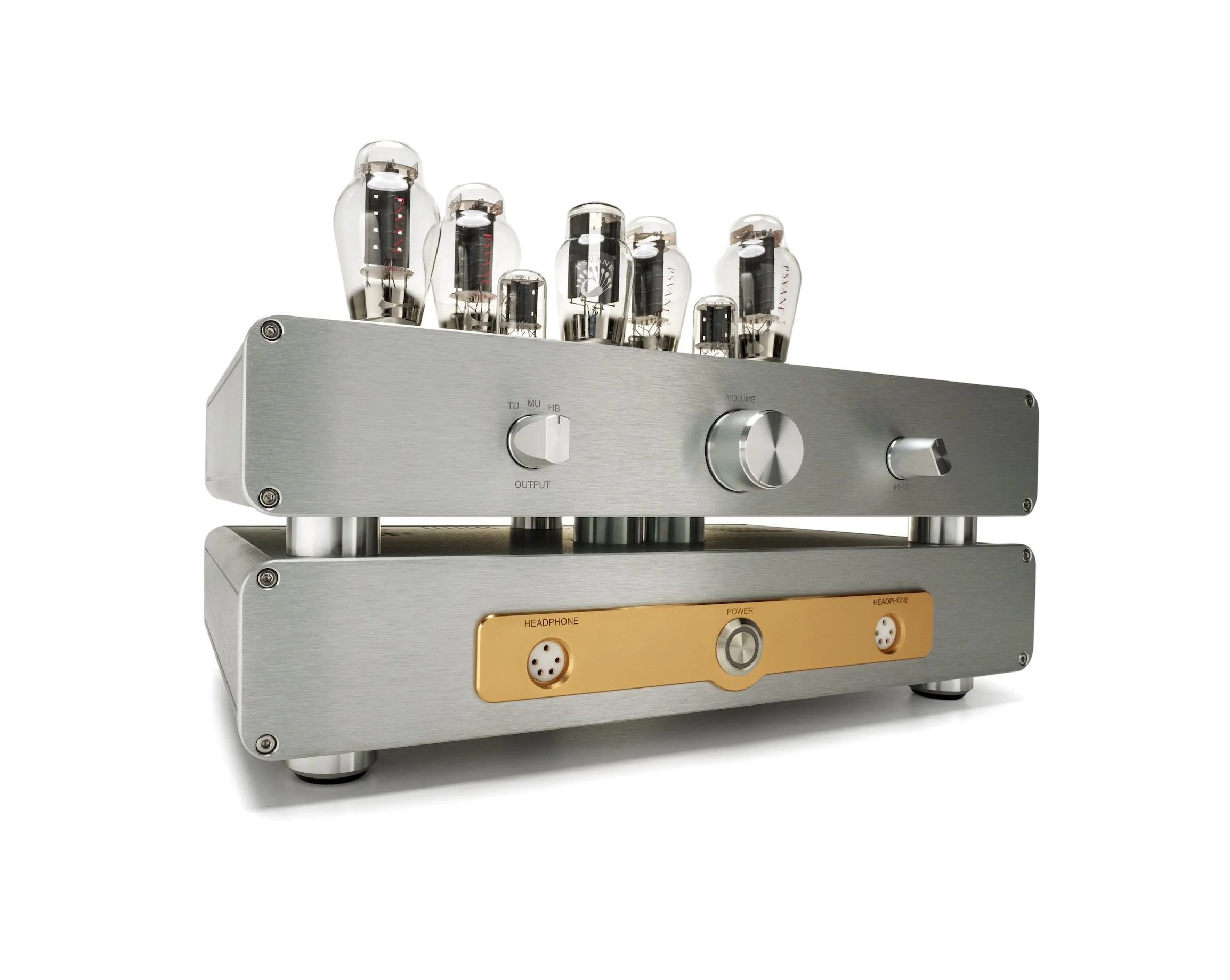

3ES Standard Edition
Compatible with 5-pin 580v (Pro-bias) for STAX, Audeze, HiFiMan, MrSpeakers electrostatic headphones
Dual headphone outputs [simultaneous operation for two (2) of the same make and model headphones]
TKD (Tokyo Ko-on Denpa) 4-channel balanced smooth potentiometer

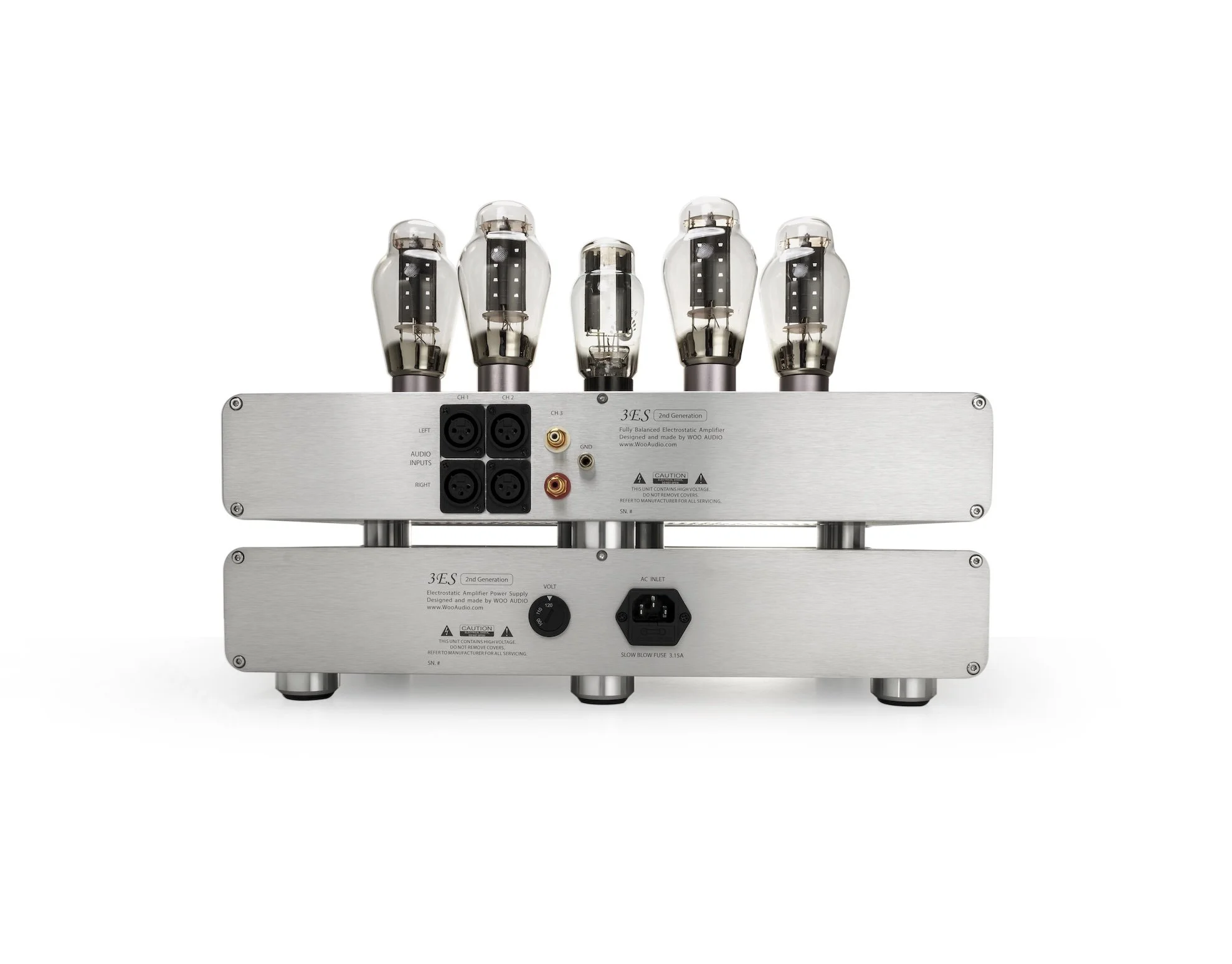

XLR input x 2, RCA input x 1
User selectable output: pre-amp or headphone
Maximum output 1500Vrms
Preamplifier voltage gain: 19db
Anodized aluminum chassis, available in black or silver
Self-biasing with compatible tubes [chart]
Dimensions [without tubes]: 17 3/4" (W), 7 1/4" (H), 13 1/2" (D) / 450.85mm (W), 184.15mm (H), 342.90mm (D), weight: 52 lbs. / 24 kg.
Voltage: AC 100 - 120V 60HZ or AC220 - 240V, 50HZ, voltage built to destination country
Designed and assembled in New York, USA
Three-year limited warranty [learn more]
Highlights
Elite Edition Adds:
Mundorf Supreme Silver/Gold audio capacitors
Single Crystal copper hook-up and signal wires are used throughout.
Alps RK50 4-channel volume control in brass enclosure
Cardas Audio XLR and WBT RCA connectors
3ES Elite Edition 24k gold-plated plaque

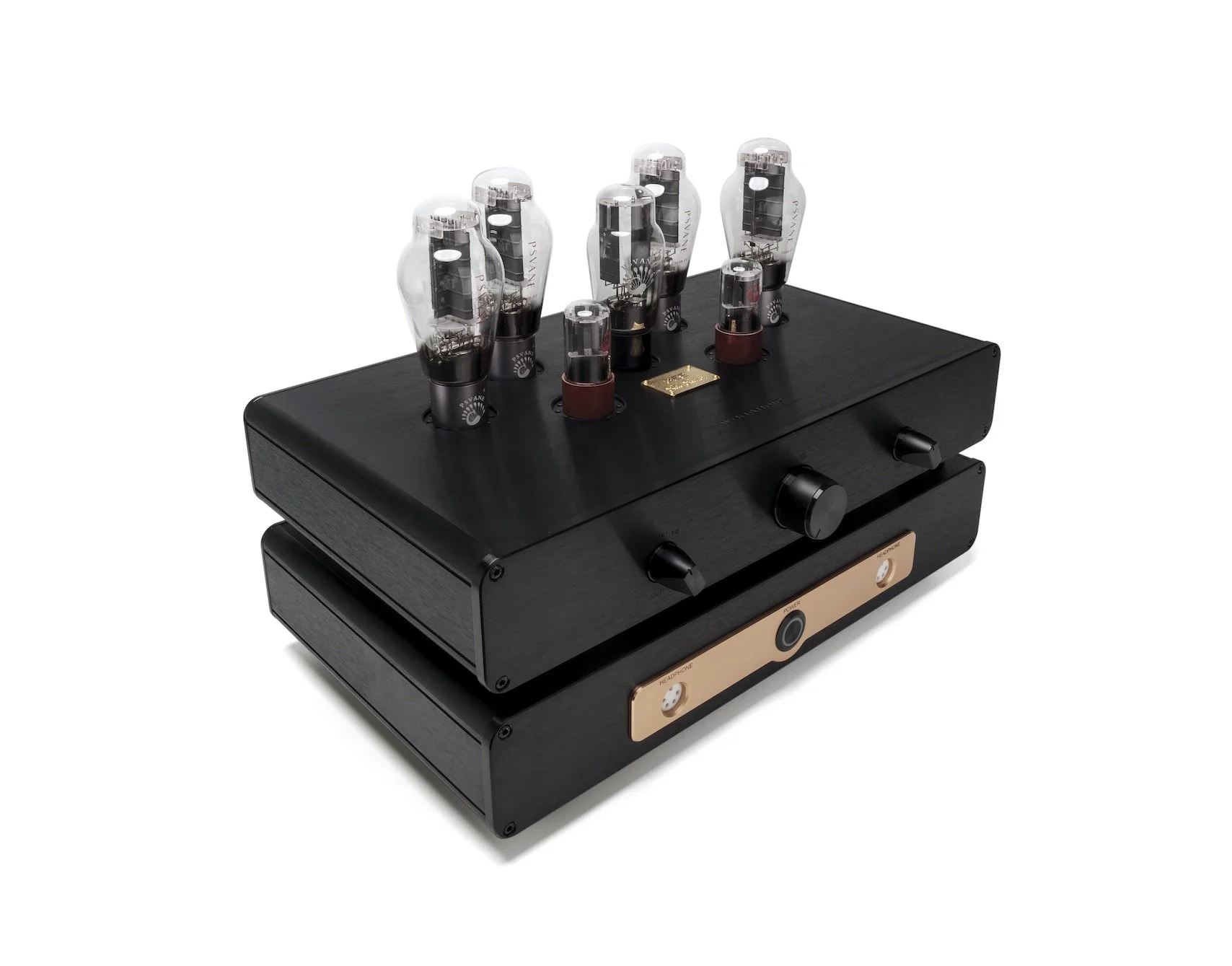

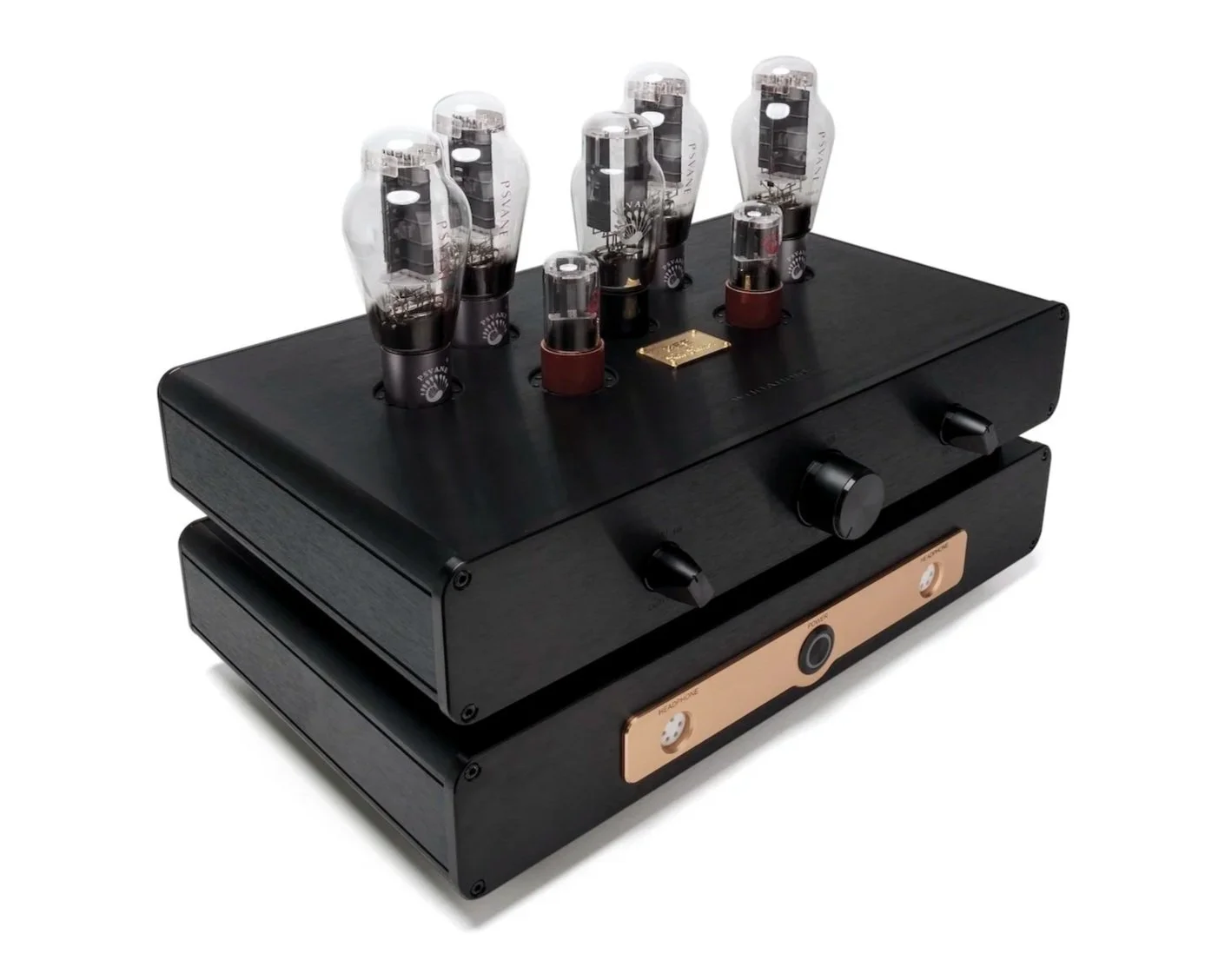

3ES Elite Edition in black shown with STAX SR-X9000 headphones (sold separately)

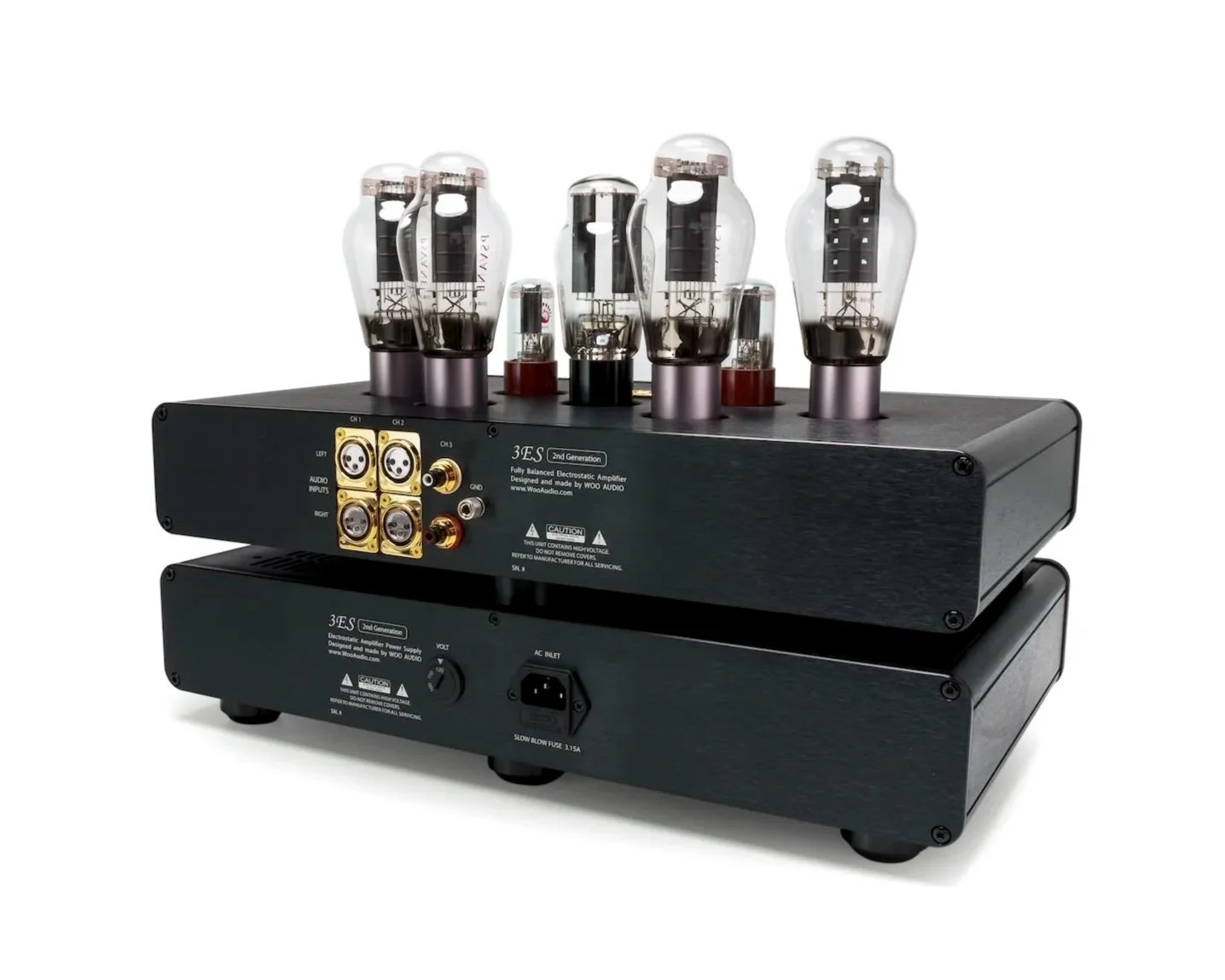

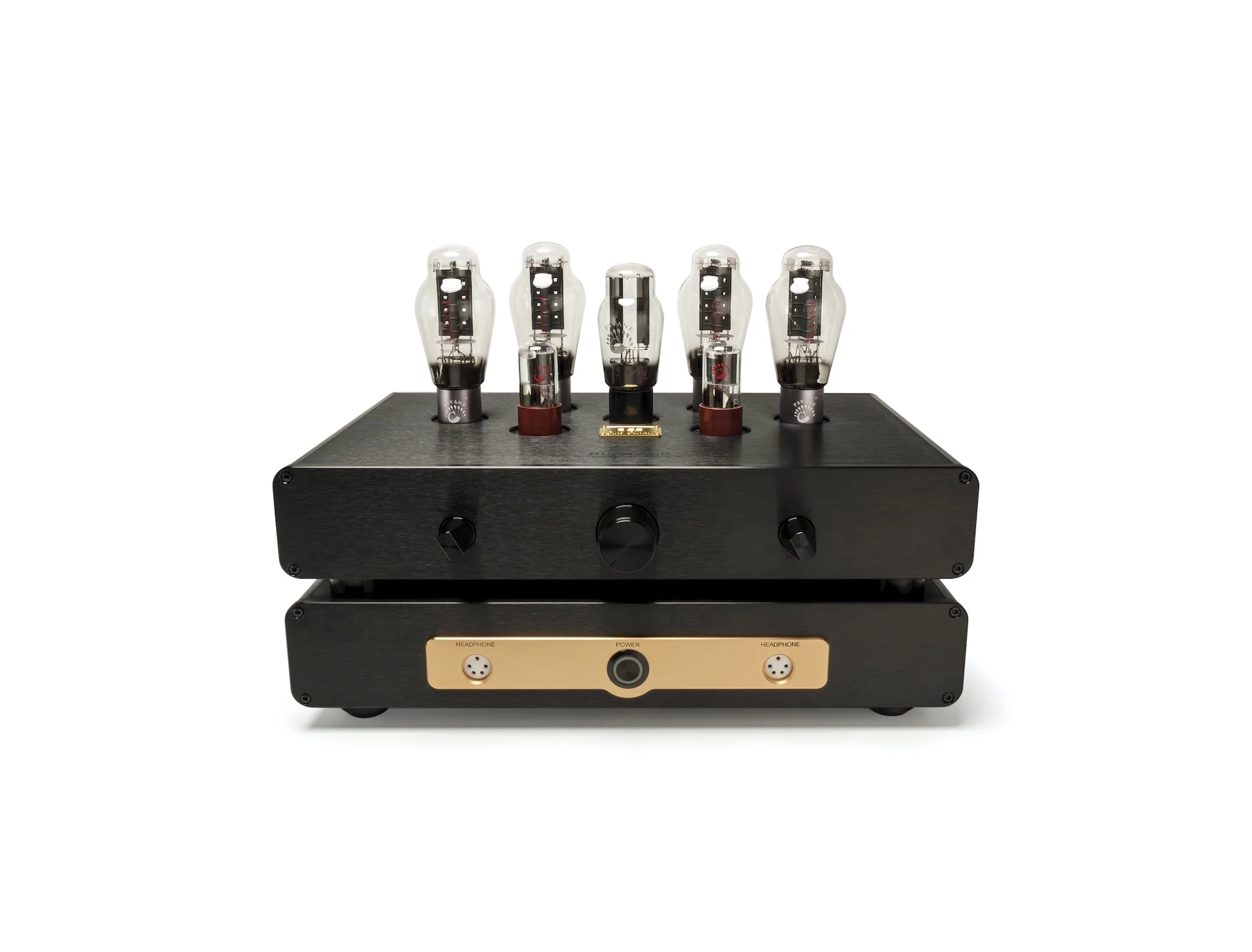

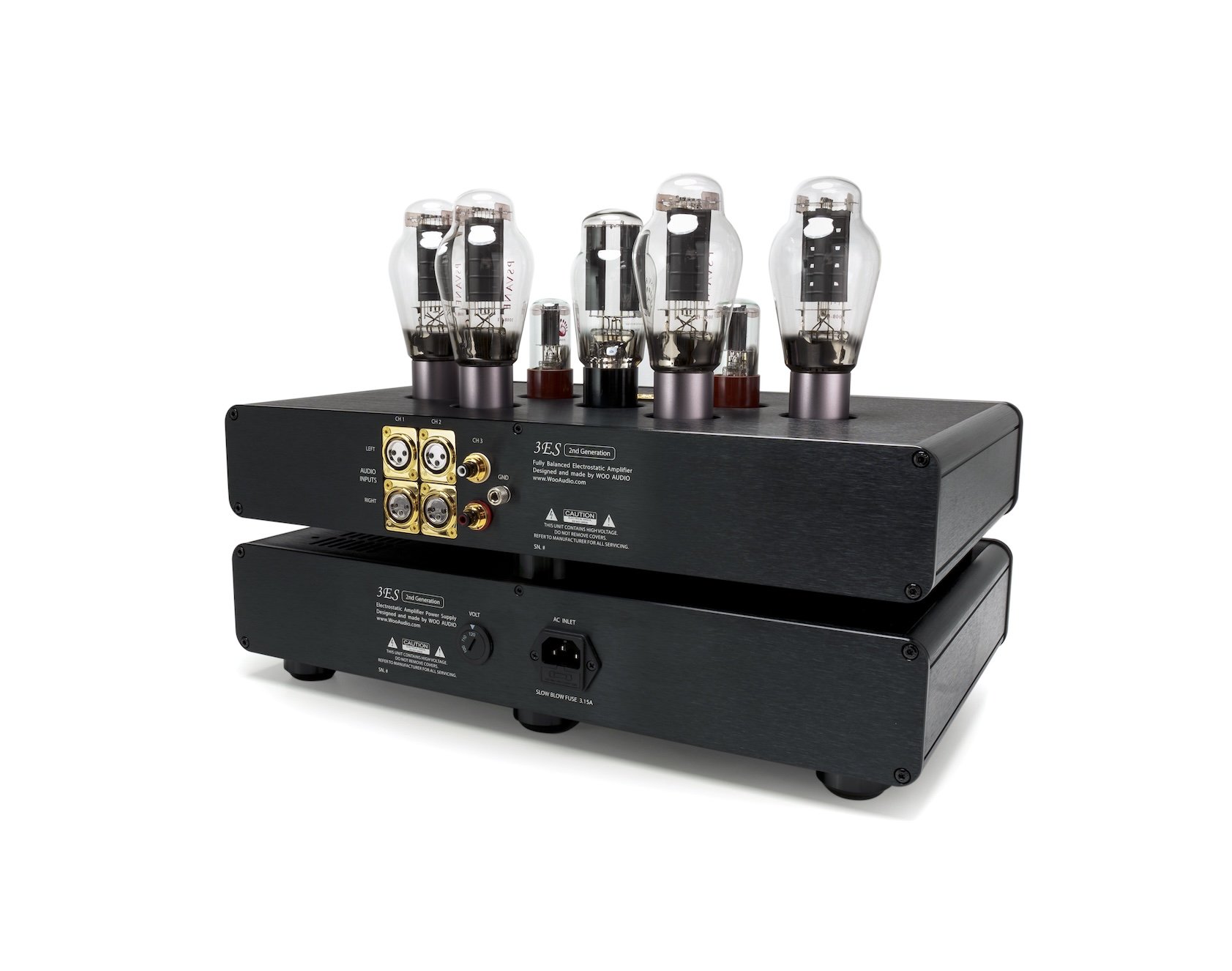

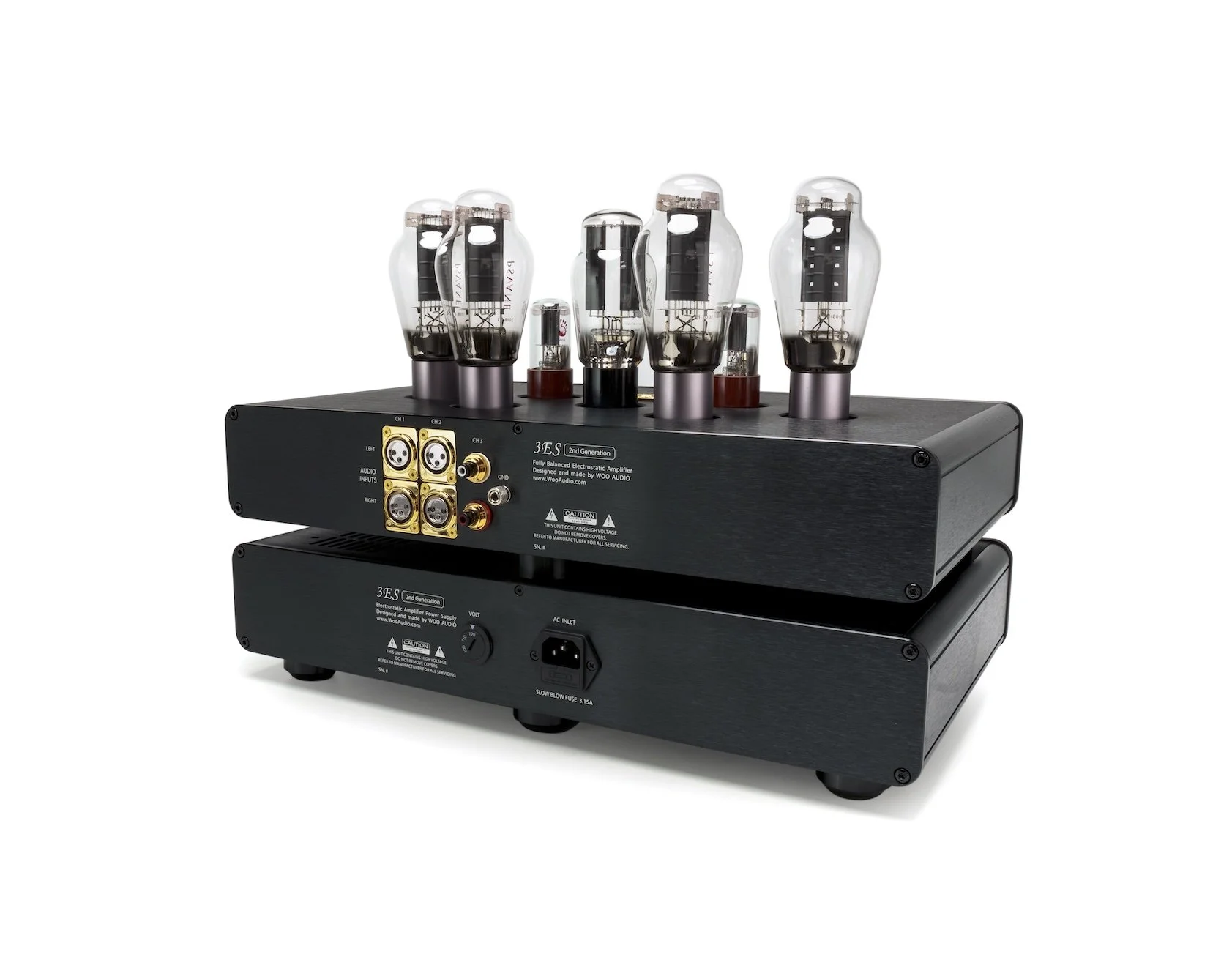

3ES Elite Edition Black. *Specifications and appearance are subject to change for improvement without notice.
3ES Standard or 3ES Elite Edition electrostatic headphone amplifier x 1
300B vacuum tube x 4
6SN7 vacuum tube x 2
5U4G (5U3C) rectifier tube x 1
Quick start guide
*AC power cord and audio cables are not included
In the box
