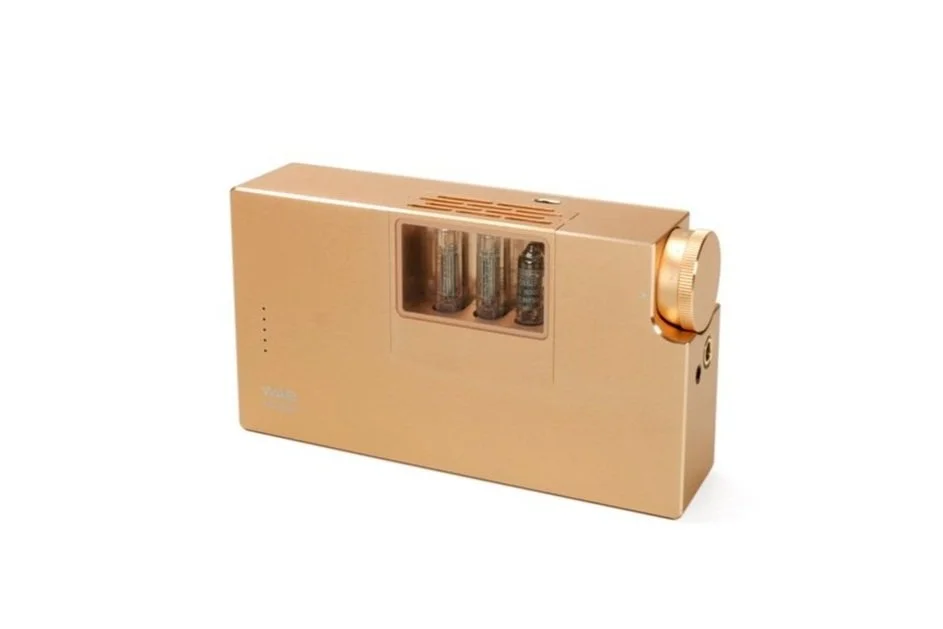

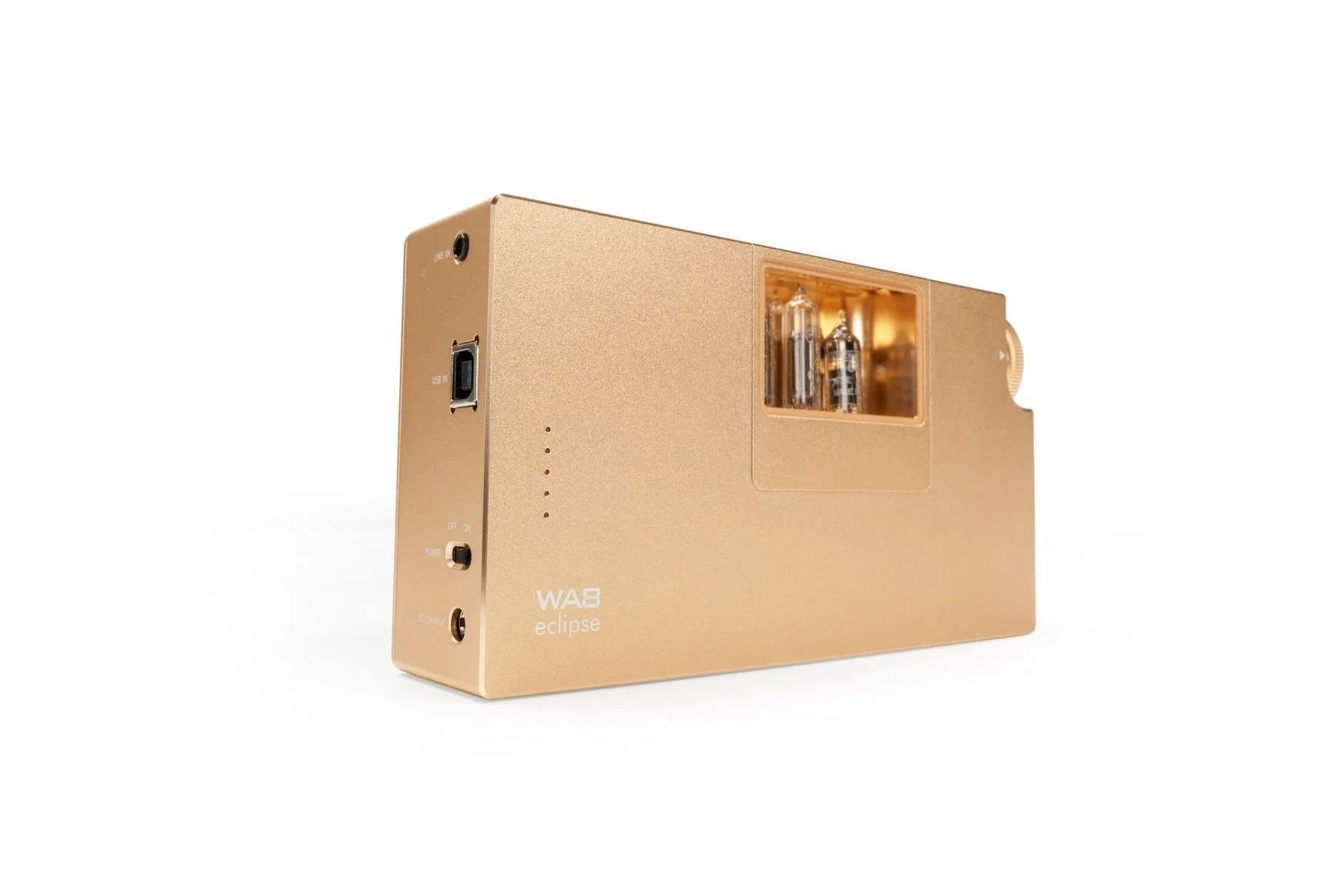

WA8 Eclipse Headphone Amplifier/DAC

Woo Audio WA8 Eclipse amplifier
Woo Audio WA8 Eclipse amplifier

WA8 Eclipse Headphone Amplifier/DAC

from 1,799.00
  • In stock, ships in 1–2 days
  • Add 3% for international orders
  • Limited time, FREE shipping within CONUS


WA8 Eclipse is the world's first battery-operated vacuum tube headphone amplifier and DAC. Featuring SET Class-A transformer output for transparent sound quality, a built-in 24bit/384kHz DAC, and easy transportability/set-up, it’s capable of driving high-end headphones of 8–600 ohm impedance, while its ultra-low noise circuitry is ideal for in-ear monitors.

While portable, the Eclipse boasts a robust military-grade vacuum tube design rated for 5,000 hours of life. Versatile in analog and digital realms, it offers two- or three-tube operation to tailor the sound quality to a variety of headphones and in-ear monitors. The Class-A, Single-ended Triode topology uses ultra-efficient OCC single crystal copper output transformers offering high bandwidth and low loss. The Eclipse also uses an audiophile-grade ESS SABRE Reference 24bit/384kHz DAC, excelling with hi-res music files and compatible with Apple iOS and Android devices.

The Eclipse operates via external DC power or "off-the-grid" battery operation. Advanced technology provides steady and pristine power to the vacuum tubes and the DAC, offering several hours of play – and the unit is operable during charging. For the first time, high-fidelity and uncompromised sound can be achieved without boundaries. WA8 Eclipse is the ideal audio system for the home, in the office or in hotels around the world.

 WA8 Eclipse in Space Gray

WA8 Eclipse in Space Gray



  • Tubes: Subminiature 6S31B power x2, 6021 driver x1

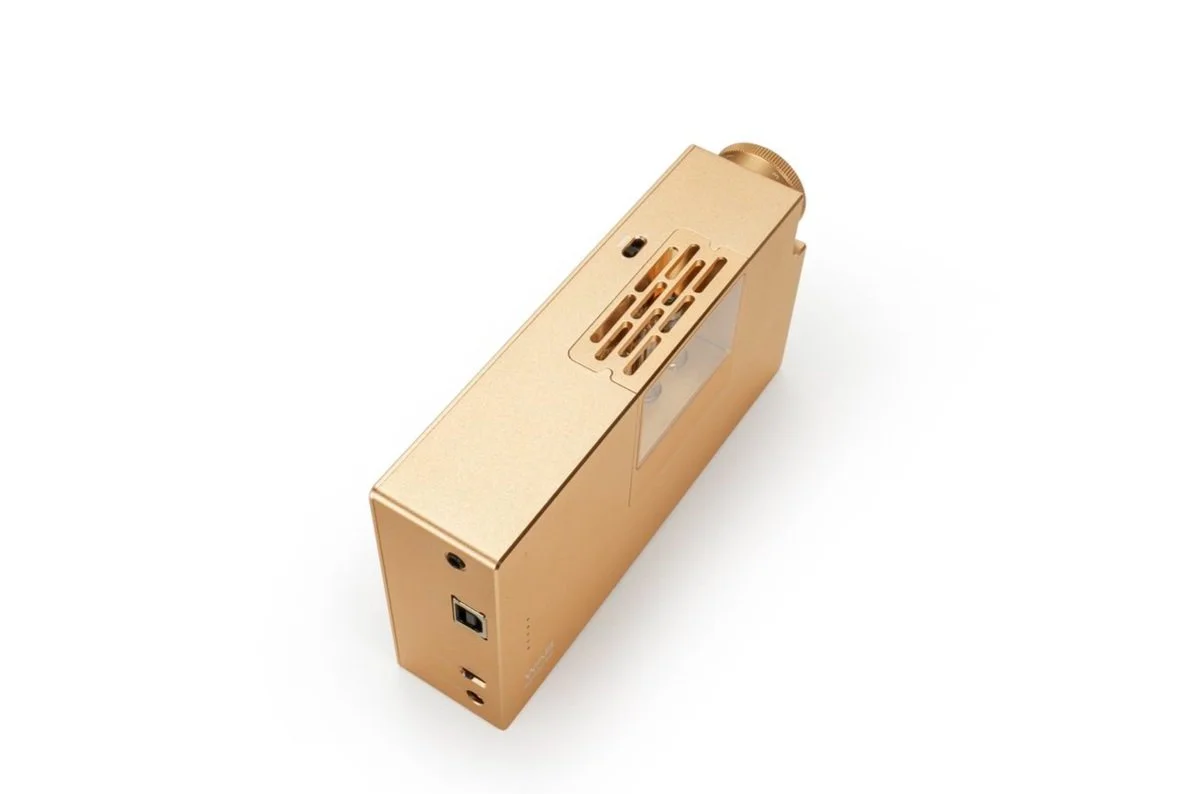

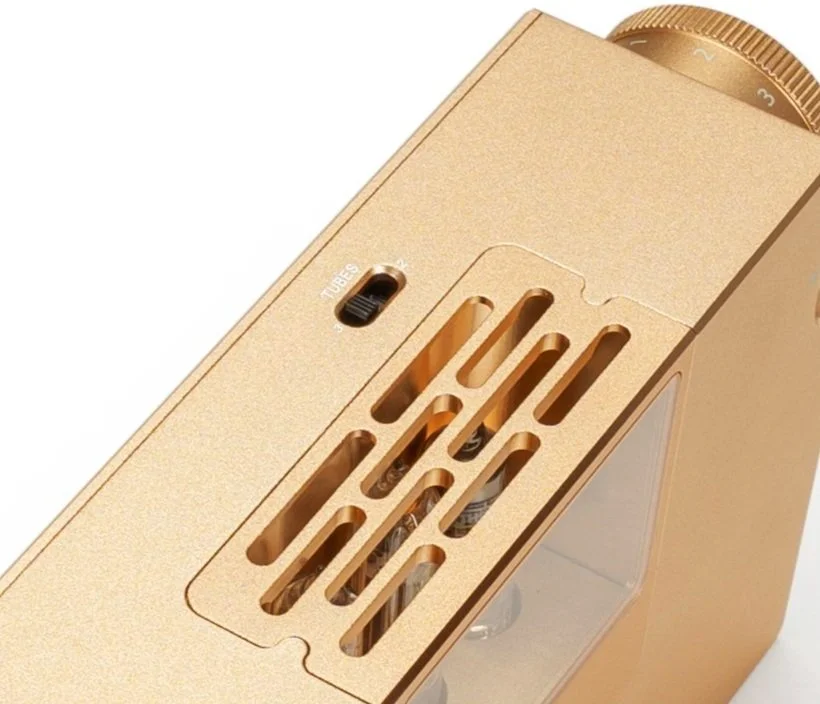

  • User selectable two or three tubes operation
  • Single-ended, all-tube design (not hybrid), Class A
  • Custom Ni Alloy core output transformers
  • ESS SABRE Reference DAC (ES9018M)
  • Hi-Res music playback up to 24-bit/384kHz
  • XMOS xCORE-AUDIO asynchronous clocking USB compatible with PC, Mac, Android and iOS devices (with Apple CCK or Android OTG adapter)
  • Asynchronous USB Type-B Input x 1, 1/8" (3.5mm) analog Input x 1

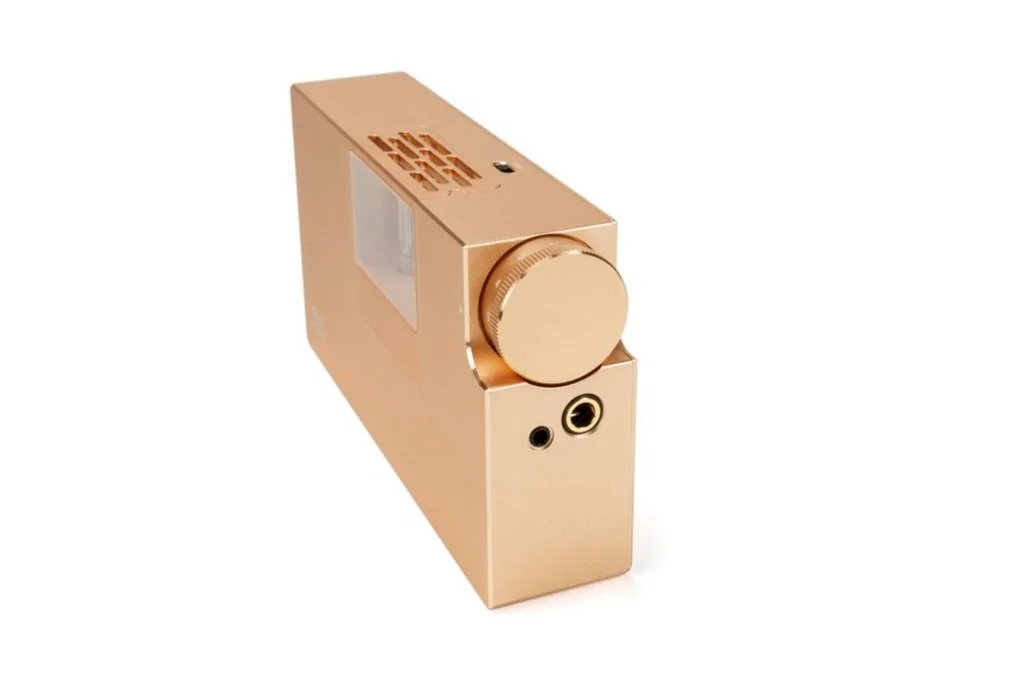

  • 1/4” (6.3mm) and 1/8" (3.5mm) headphone outputs (8–600 Ohms)
  • Rechargeable Lithium-ion battery
  • Up to 4 hrs. of continuous music playback
  • Anodized aluminum chassis available in black, space gray and gold
  • Power rating (3-tube): 250mW @32Ω, 350mW @50Ω, 180mW @120Ω, 120mW@300, 80mW @600Ω
  • Dimensions: 6.69" (L) x 3.6" (W) x 1.69" (D) 2.4lbs.
  • Global voltage (100v–240v) without a converter
 *Specifications and appearance are subject to change for improvement without notice.

*Specifications and appearance are subject to change for improvement without notice.


In the Box

  • Quick start guide
  • WA8 Eclipse amplifier/DAC x 1
  • Pelican hard case x 1
  • AC Charger x 1
  • USB cable x 1



Leather Case for WA8 Eclipse

Tubes Upgrade

Replacement Tube Kit for WA8 Eclipse
from 85.00
