[Blemish] WA234-MONO (1st gen) Headphone / Speakers Amplifier (In Stereo Pair)
[Blemish] WA234-MONO (1st gen) Headphone / Speakers Amplifier (In Stereo Pair)

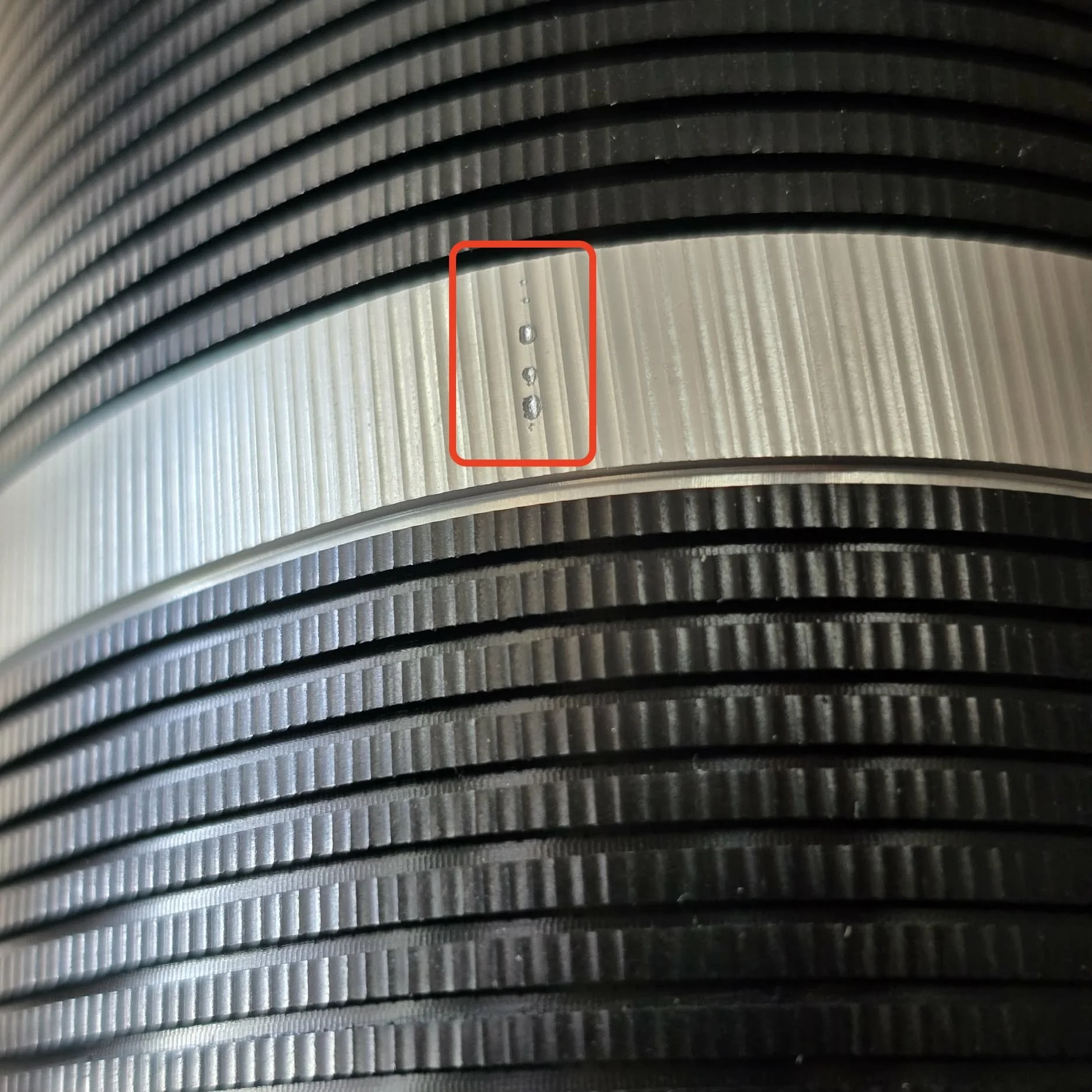

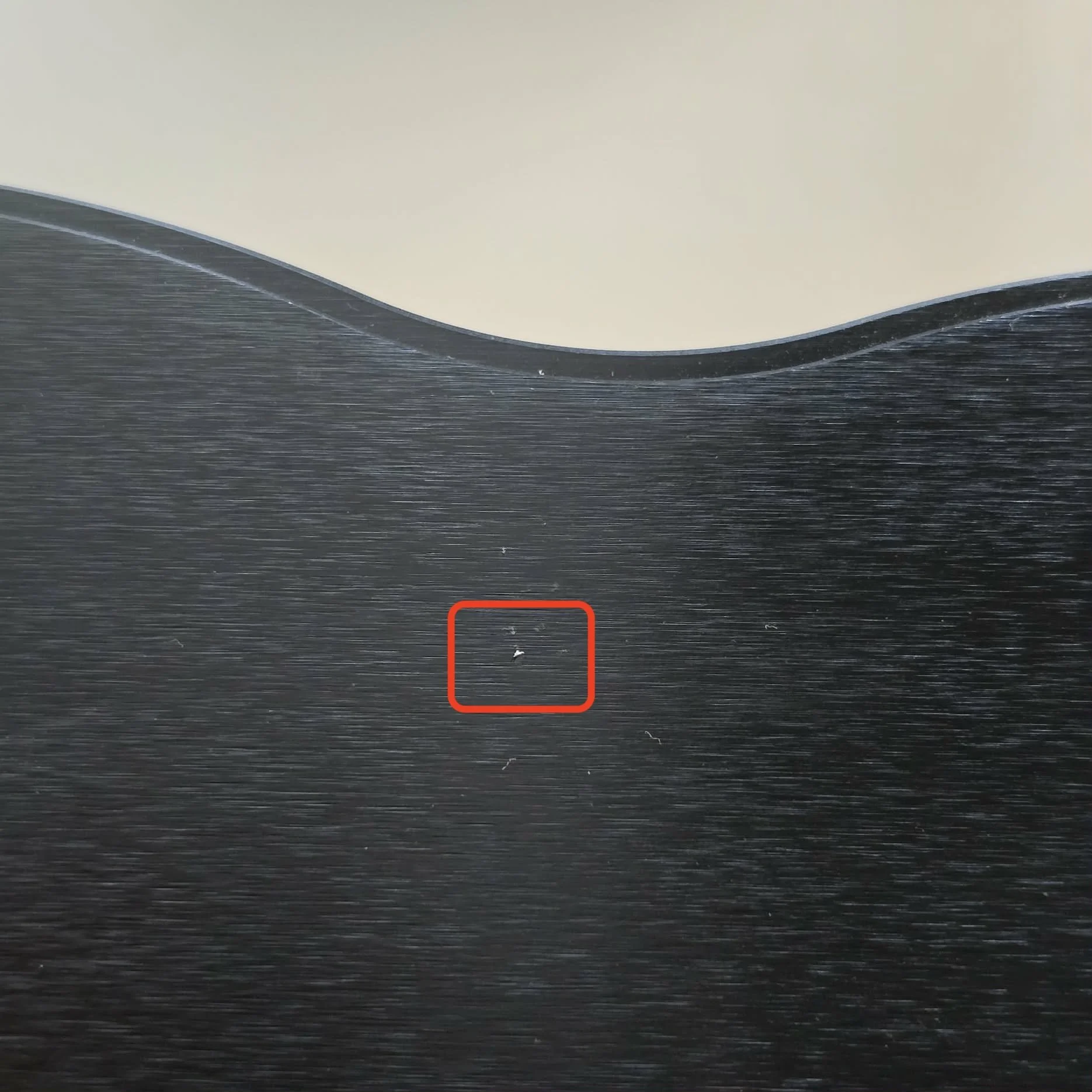

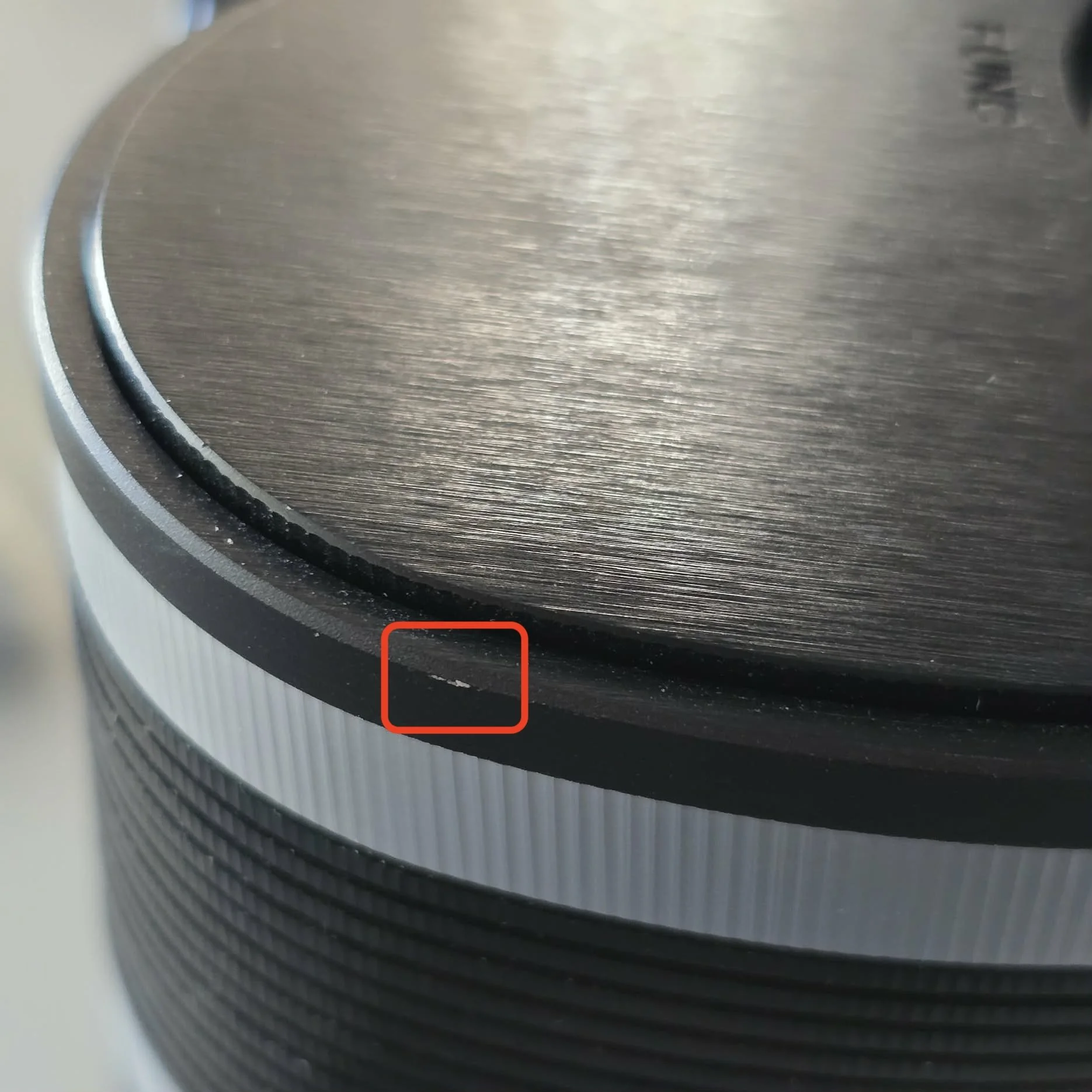

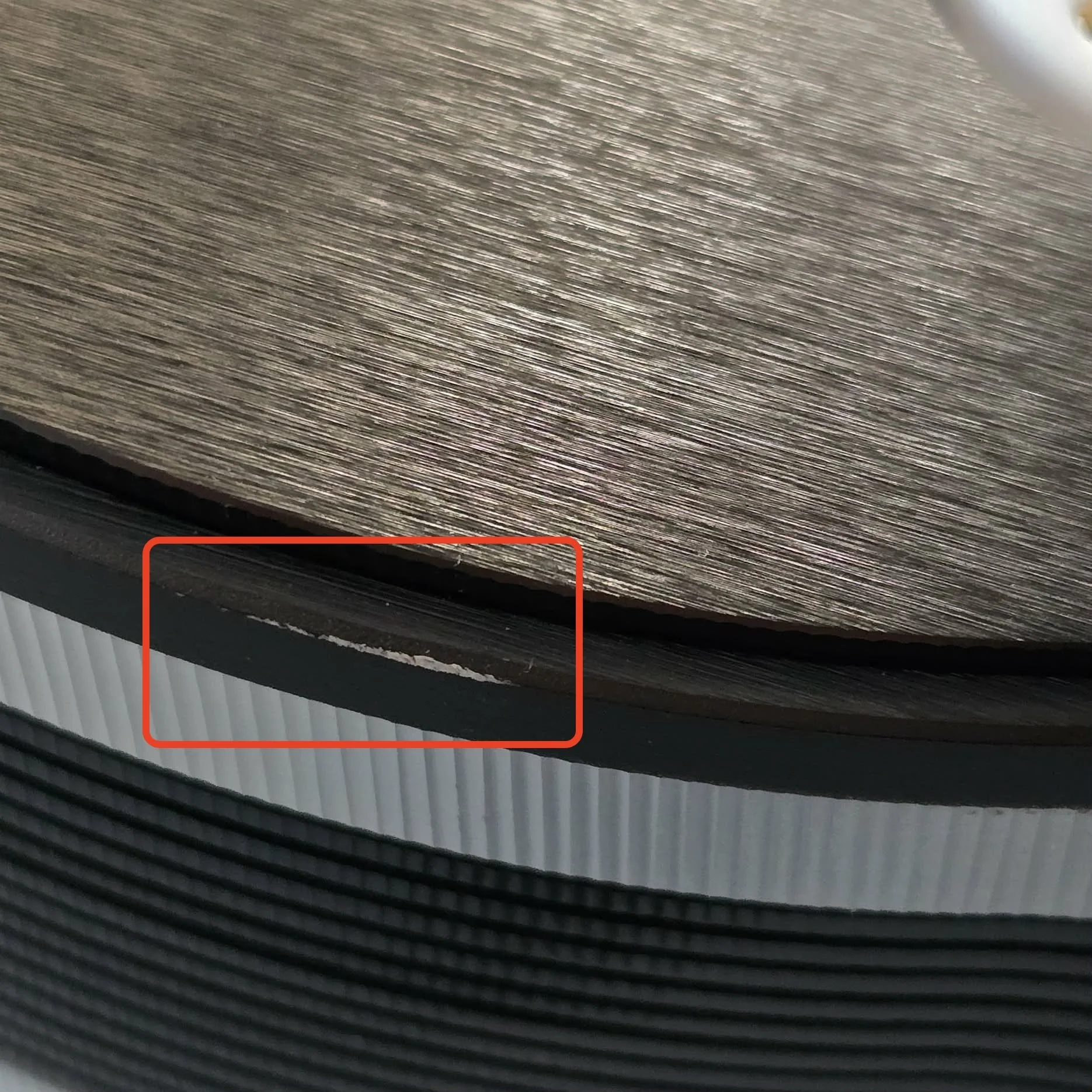

[BLEMISH] see photos, one (1) at this price
Limited time, FREE shipping worldwide
Designed and assembled in New York, USA
3-year limited warranty [learn more]
Have questions? Contact us
Have a trade-in? Learn more
Comments and Reviews
Overview
The WA234-Mono is the ultimate SET (single-ended triode) amplifier. The design is unlike any that the world has ever seen. The WA 234 unique design allows for us of legendary tubes like the 300B, 2A3 and 45 triodes. The choice of tubes offers the highest level of transparency and musicality. The WA234-Mono let you experience music like never before. You can now use any headphone and many high efficiency speakers. Whereas a typical tube amplifier allows you to use only one type of power tube (or a substitute with a similar rating), the 234-MONO increases your options in an elegant way. A tube-switching key (TSK) allows the amplifier to accept 2A3, 300B, or 45 power tubes, so you can instantly switch your tube to suit your music or your mood.
WA234-MONO (2nd gen) in Black Diamond finish.
SWITCHING KEY SYSTEM
Output switching key (OSK) allows the listener to switch between speaker and headphone output modes, making it possible to enjoy a piece of music through headphones, then immediately share it with friends through speakers. To make the 234-MONO even more versatile, Woo Audio created output-switching keys for cathode and plate outputs for high and low-impedance headphones.
Tube Switching Keys (TSK)
Tube switching key (TSK) allows the user to switch between different power output tubes (2A3, 300B, 45).
For 2A3 Power Output Tube
For 300B Power Output Tube
For 45 Power Output Tube
Output Switching Keys (OSK)
Output switching key (OSK) allows the user to switch between speaker and different headphone output modes.
Cathode Output LO-Z for High Sensitivity Headphone
Cathode Output HI-Z for High Sensitivity Headphone
Plate Output LO-Z for Low Sensitivity Headphones
Plate Output HI-Z for Low Sensitivity Headphones
For loudspeakers output (4 to 16 ohms)
Monoblock design, Headphone / Speakers Amplifier (In Stereo Pair)
Tubes: 6SN7 driver x 1, 300B power x 1, 5U4G rectifier x 1 each amplifier
Compatible with 2A3 / 300B / 45 power tubes
Single-ended Triode, Class-A
Transformer-coupled, Point-to-Point wiring
Independent headphone and speaker circuity
Compatible traditional headphones impedance 8–600 Ohms
Polytetrafluoroethylene (PTFE) tube sockets
Self-biasing with compatible tubes [chart]
Power output rating [chart]
Anodized aluminum chassis, available in Diamond Black or Platinum Silver
Dimensions without tubes: 10" (H) x 8.75" (W) x 13.25" (D), 60 lbs. / 254mm (H) x 222.25mm (W) x 336.55mm (D), 27.21 kg.
Voltage (100v–240v) factory configurable
Designed and assembled in New York, USA
Three-year limited warranty [learn more]
Highlights
WA234 MONO tubes glow
Quick start guide
[Blemish] WA234-MONO (1st gen) amplifier x 2 [left and right channel]
WA234-MONO KEYS system [full set] x 1
6SN7 vacuum tube x 2
300B vacuum tube x 2
5U4G (274B) rectifier tube x 2
[Traditional headphones] 1m, 4-pin XLR (female) to dual 3-pin XLR (male) cable x 1
*AC power cord and audio cables are not included
