WA33 Fully-balanced Headphone Amp/Preamplifier

Woo Audio WA33 amplifier
Woo Audio WA33 amplifier

WA33 Fully-balanced Headphone Amp/Preamplifier

from 7,999.00
  • BTO, ships in 2–4 weeks
  • Add 3% for international orders
Color:
Upgrade:
Quantity:
BUY

Overview

In 2009, we introduced two world-class fully balanced headphone amplifiers––the WES electrostatic amp and the WA22 dynamic amp. Both are preferred choices among the most discerning audiophiles. Here at Woo Audio, we constantly push the performance boundaries. The newly developed WA33 is a state-of-the-art, fully balanced headphone amplifier that raises the bar in setting a new reference in music reproduction.

The WA33 employs a true fully balanced design in a compact form factor, featuring a quad of 6C45 tubes for the driver that pushes a quad of 2A3 tubes for the power, and all in direct-heated triodes. It delivers high power to drive demanding headphones to their full potential while maintaining a low noise floor for use with highly sensitive models. The WA33 shares the same striking appearance of the critically acclaimed WES, where both amplifier units are independent of the power supply. This approach eliminates any interference to critical audio components. Additionally, our internal coupling architecture (ICA) technology allows the WA33 amplifier to merge with the power supply unit without an external umbilical cord. The ICA shortens the signal path and thus significantly reduces unwanted electrical interference and raises sound performance to a level beyond what anyone has previously experienced in a headphone system.

The WA33 reveals the most delicate detail with the highest level of refinement. Complex music passages are handled with ease and authority. The expansive soundstage, holographic imaging, and rich tones that are pristine, natural, and vivid create a sense of realism that gives the user a euphoric listening experience. With the WA33, music comes to life.

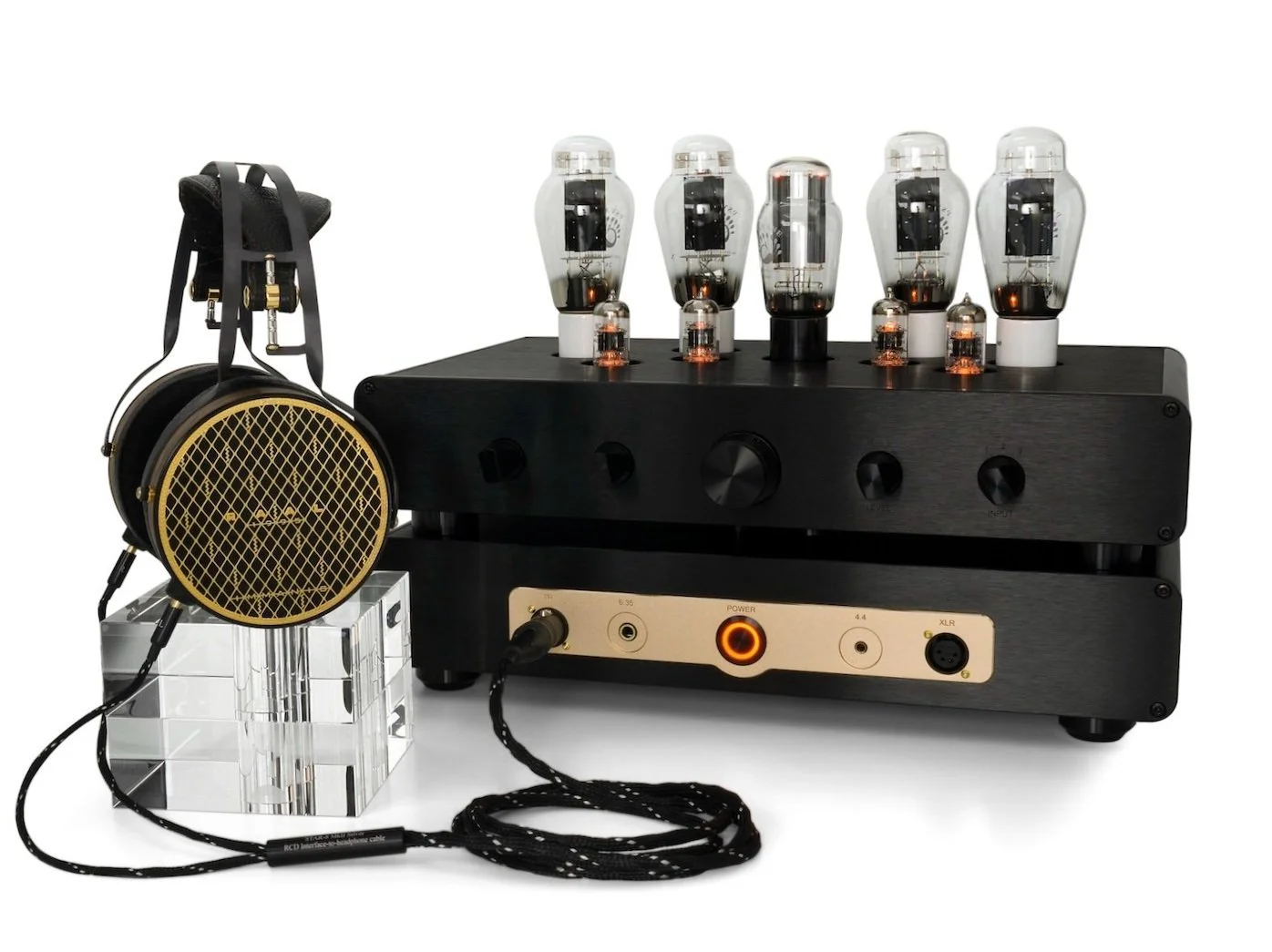

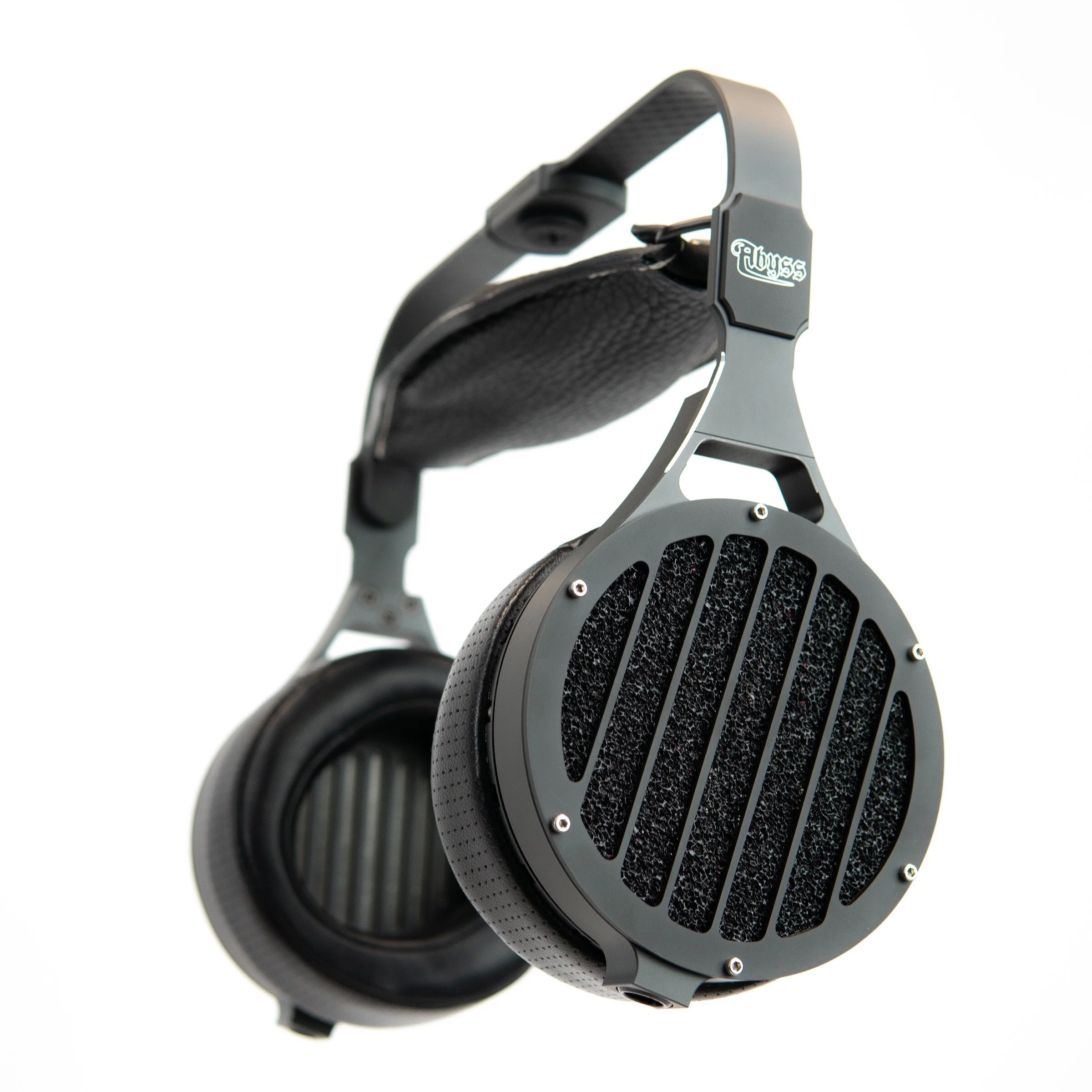

 WA33 with upgrade tubes shown. Abyss AB-1266 headphones sold seperately.

WA33 with upgrade tubes shown. Abyss AB-1266 headphones sold seperately.


  • Fully balanced design
  • Tubes: 6C45 driver x 4, 2A3 power x 4, 5U4G rectifier x 1
  • Polytetrafluoroethylene (PTFE) tube sockets
  • Push Pull, Class-A
  • Transformer-coupled, Point-to-Point wiring
  • Internal Coupling Architecture (ICA)
  • XLR input x 2, RCA input x 1
  • Outputs: Dual 3-pin XLR (left and right channel), 4-pin XLR x 1 and 1/4" (6.3mm), XLR x 1 preamp
  • User selectable output: pre-amp or headphone
  • User selectable HI/LO impedance and HI/LO level for headphone
  • Headphones impedance: 8—600 Ohms
  • Frequency response: 10Hz— 60kHz, -2dB
  • Power output: up to 10 watts per channel
  • Signal/Noise: > 95 dB, THD: < 0.05%, 1kHz
  • Anodized aluminum chassis, available in black or silver
  • Self-biasing with compatible tubes [chart]
  • Power consumption: 150w
  • Voltage: AC 100 - 120V 60HZ or AC220 - 240V, 50HZ, voltage built to destination country
  • Dimensions: 17.5"(W), 12"(D), 7.5"(H) without tubes, weight: 53 lbs for Standard, 56 lbs for Elite Edition

Highlights


Elite Edition

The WA33 “Elite Edition” is the result of our further pursuit of unprecedented performance. Our experienced engineers have selected the best internal components and materials from intensive research and development. Elite Edition embodies a harmonious balance between sophisticated design and technological excellence to satisfy the most demanding music lovers.

wa33-elite-edition-black-top-view

Highlights



Elite Edition includes:

  • Ultra high-bandwidth, low-loss output transformers custom-made with Single Crystal Copper wires and Ni Alloy metal
  • Single Crystal copper hook-up and signal wires are used throughout.
  • Alps RK50 4-channel volume control in brass enclosure
  • Mundorf MCap Supreme Silver/Gold capacitor for interstage coupling, one per channel (4pcs)
  • Mundorf MTube capacitors for voltage filter (3pcs)
  • Cardas Audio XLR and WBT RCA connectors
  • WA33 Elite Edition 24k gold-plated plaque
 *Specifications and appearance are subject to change for improvement without notice.

*Specifications and appearance are subject to change for improvement without notice.

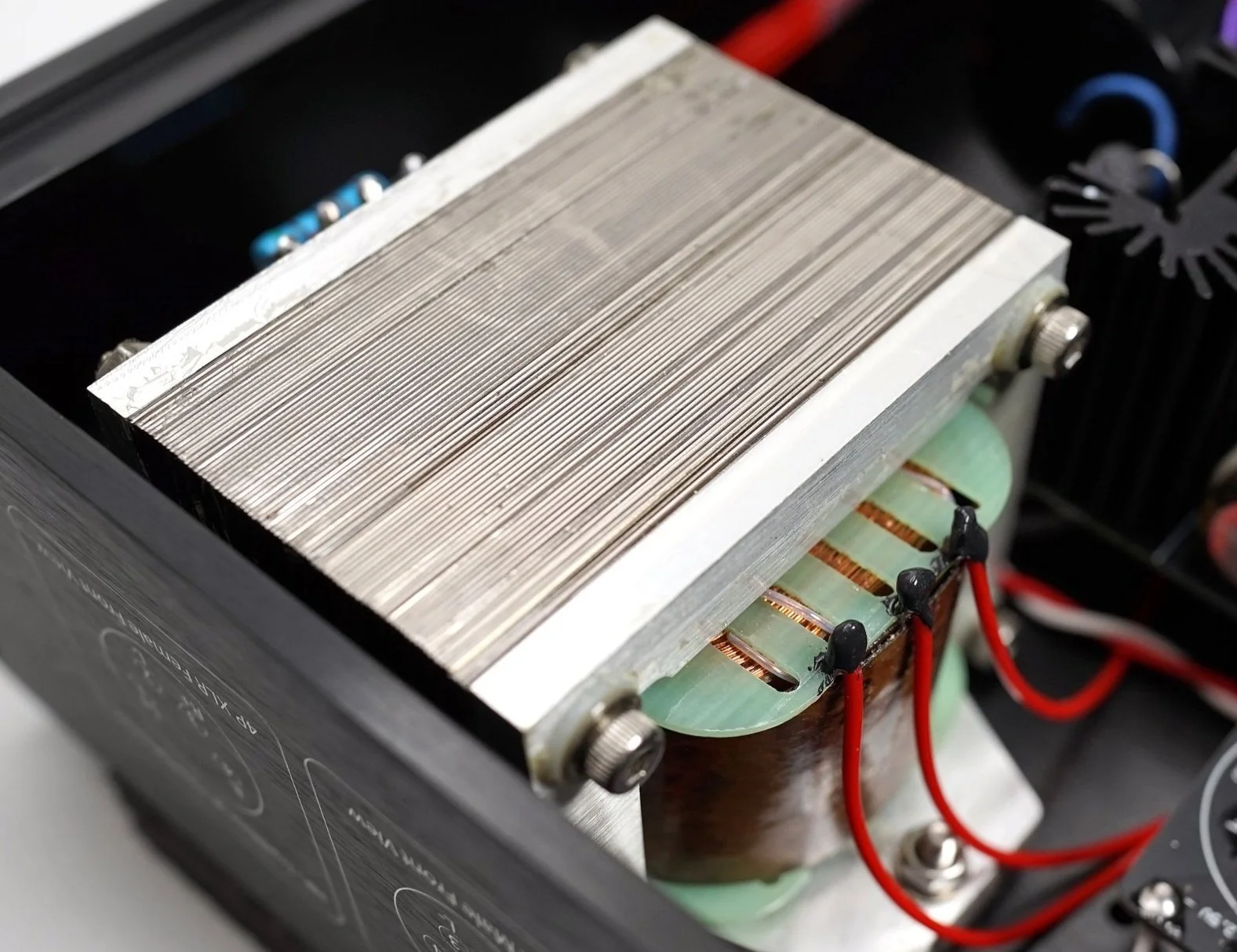

 Ultra high-bandwidth, low-loss output transformers custom-made with Single Crystal Copper wires and Ni Alloy metal

Ultra high-bandwidth, low-loss output transformers custom-made with Single Crystal Copper wires and Ni Alloy metal

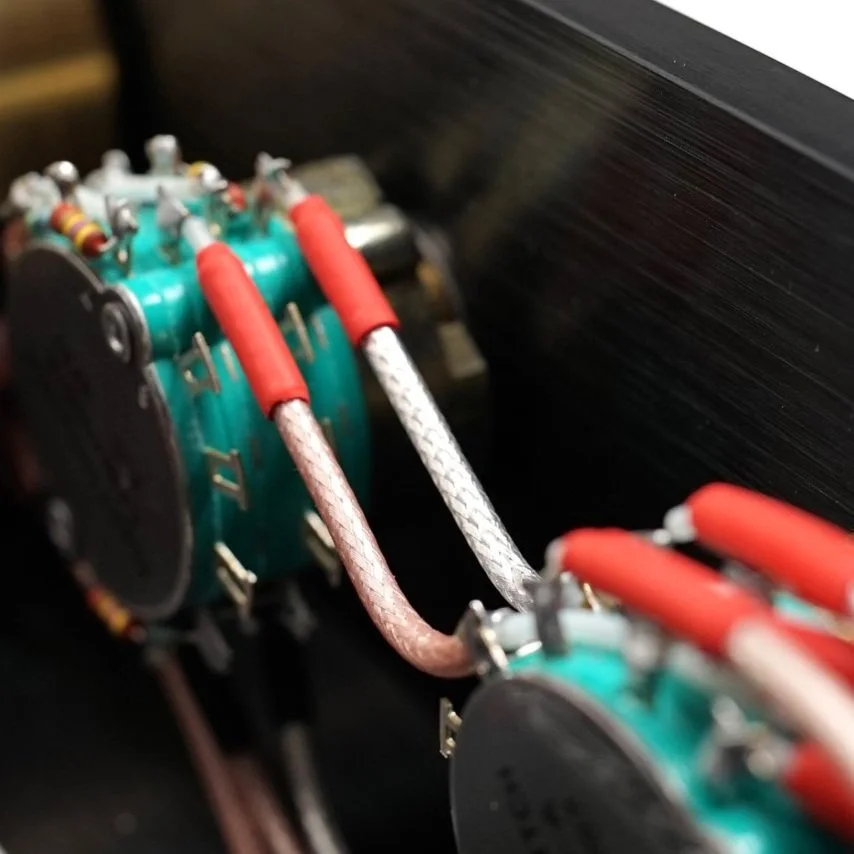

 Single Crystal copper hook-up wires throughout.

Single Crystal copper hook-up wires throughout.

 Mundorf MTube capacitors for voltage filter

Mundorf MTube capacitors for voltage filter

 Mundorf MCap Supreme Silver/Gold capacitor for interstage coupling

Mundorf MCap Supreme Silver/Gold capacitor for interstage coupling

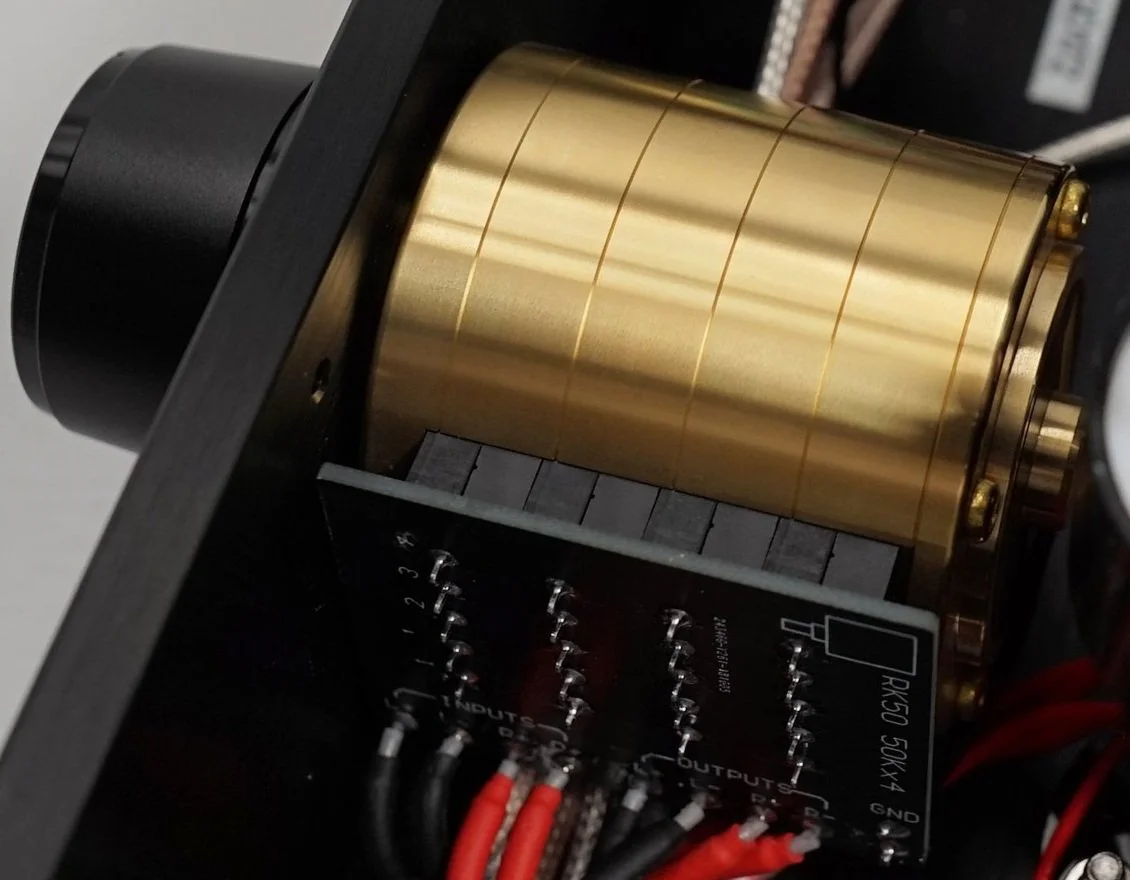

 Alps RK50 4-channel volume control in brass enclosure

Alps RK50 4-channel volume control in brass enclosure

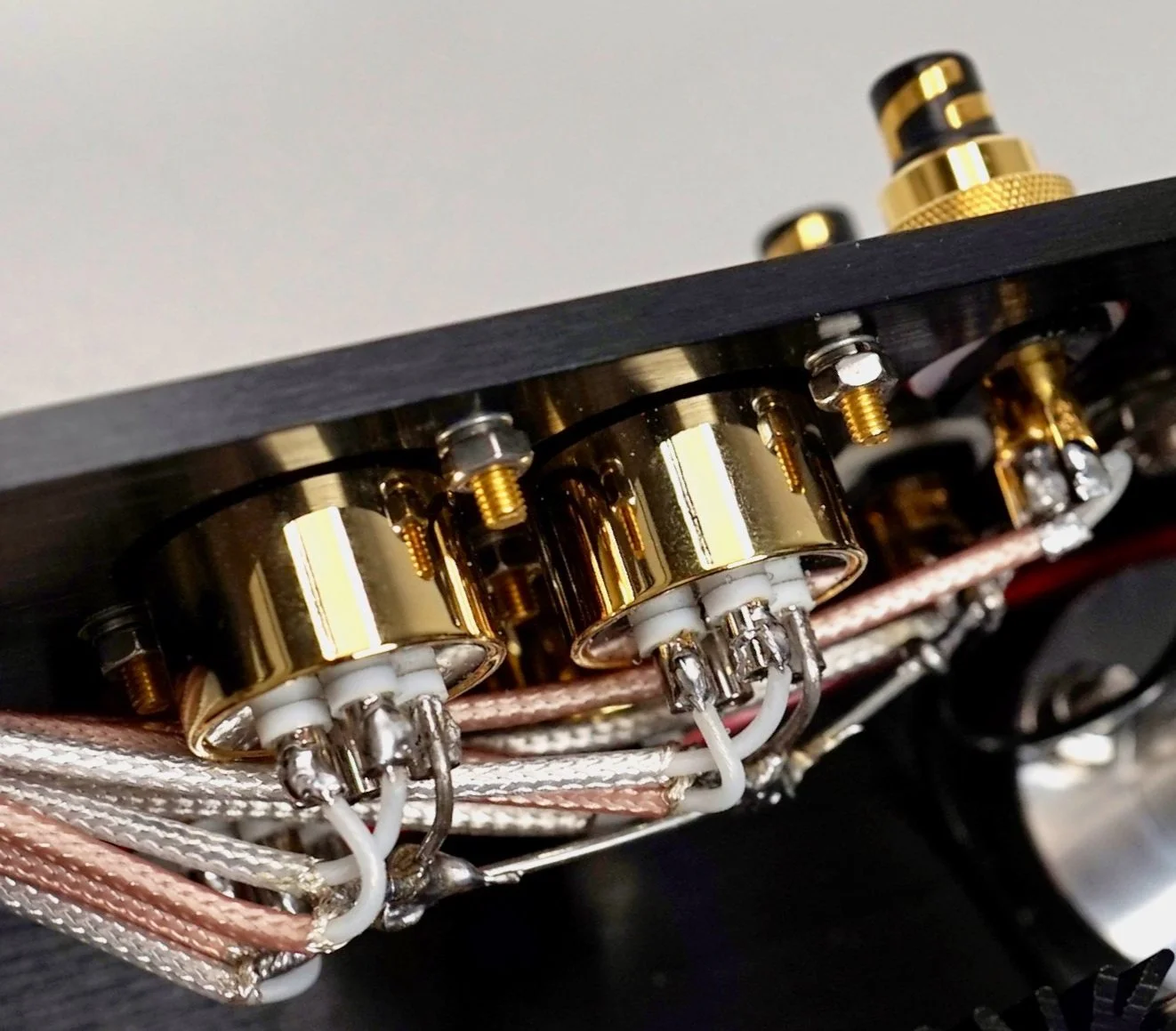

 Cardas XLR and WBT RCA connectors

Cardas XLR and WBT RCA connectors



  • Quick start guide
  • WA33 or WA33 Elite Edition x 1
  • 2A3 tube x 4
  • 274B tube x 1
  • 6C45 tube x 4

*AC power cord and audio cables are not included

In the box
