WA6-SE (2nd gen) Headphone Amplifier
WA6-SE (2nd gen) Headphone Amplifier
IN STOCK, ships in 1–2 days
Limited time, FREE shipping worldwide
Designed and assembled in New York, USA
3-year limited warranty [learn more]
Have questions? Contact us.
Comments and Reviews
Overview
WA6-SE (2nd gen) is the dual chassis big brother of WA6 (2nd gen). It is also an all-tube design with point-to-point wiring, Class-A, transformer-coupled, single-ended triode (SET) headphone amplifier. WA6-SE (2nd gen) features an independent power supply unit which greatly improves its sonic performance. It can drive most dynamic driver and planar magnetic headphones ranging from 8–600 Ohms to their full potential; delivering a rich tube sound with speed and dynamics typically not found in an amplifier of this size. Whether you have one headphone or ten, WA6-SE (2nd gen) would maximize the listening enjoyment.
Updated to 2nd generation in April 2017
2nd gen is a minor update to driver/power tubes from 6DE7 to 13DE7 (1st and 2nd gen tubes incompatible)
Tubes: 13DE7 driver/power x 2, 5U4G rectifier x 1
Polytetrafluoroethylene (PTFE) tube sockets
Single-ended Triode, Class-A
Transformer-coupled, Point-to-Point wiring
Pseudo-dual power supply
RCA input x 2
Dual 1/4" (6.3mm) stereo headphone outputs (HI / LO impedance)
ALPS potentiometer and power switch
Anodized aluminum chassis, available in black or silver
Self-biasing with compatible tubes [chart]
Global voltage (100v–240v) without a converter
Dimensions: 6"(H), 5½"(W), 13"(D) amplifier 12 lbs., 6"(H), 5½"(W), 13"(D) power supply 10 lbs.
Designed and assembled in New York, USA
Three-year limited warranty [learn more]
Highlights
*Specifications and appearance are subject to change for improvement without notice.
WA6-SE (2nd gen) headphone amplifier x 1
13DE7 vacuum tube x 2
5U4G (5U3C) rectifier tube x 1
Umbilical DC cord x 1
Quick start guide
*AC power cord and audio cables are not included
In the Box
Recommended

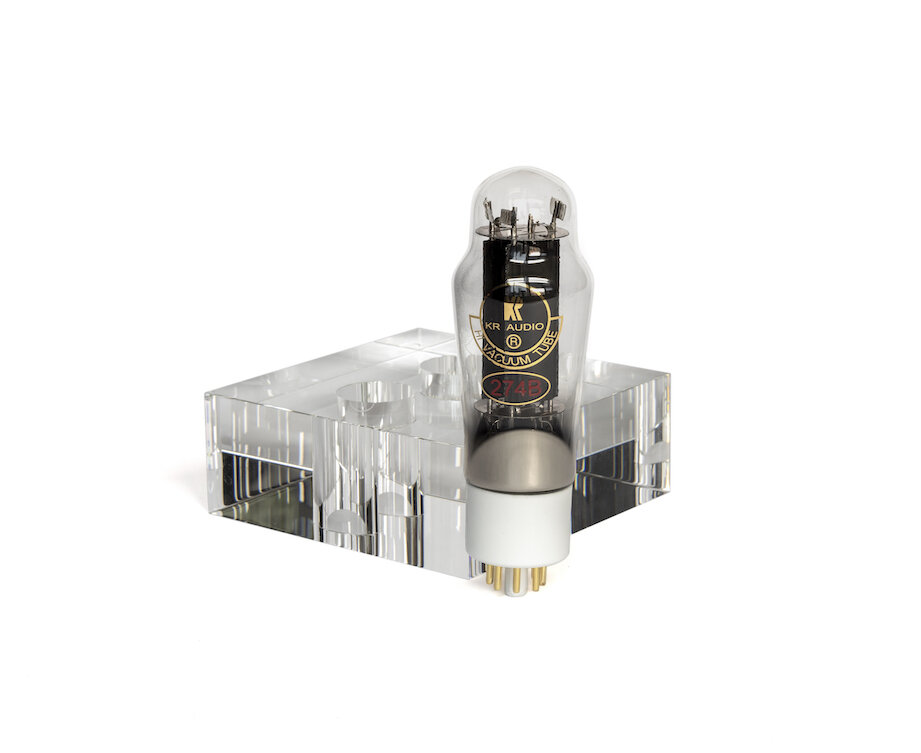

Rectifier Tube Upgrade 1
Rectifier Tube Upgrade 2
Rectifier Tube Upgrade 3
Driver/Power Tube Upgrade
