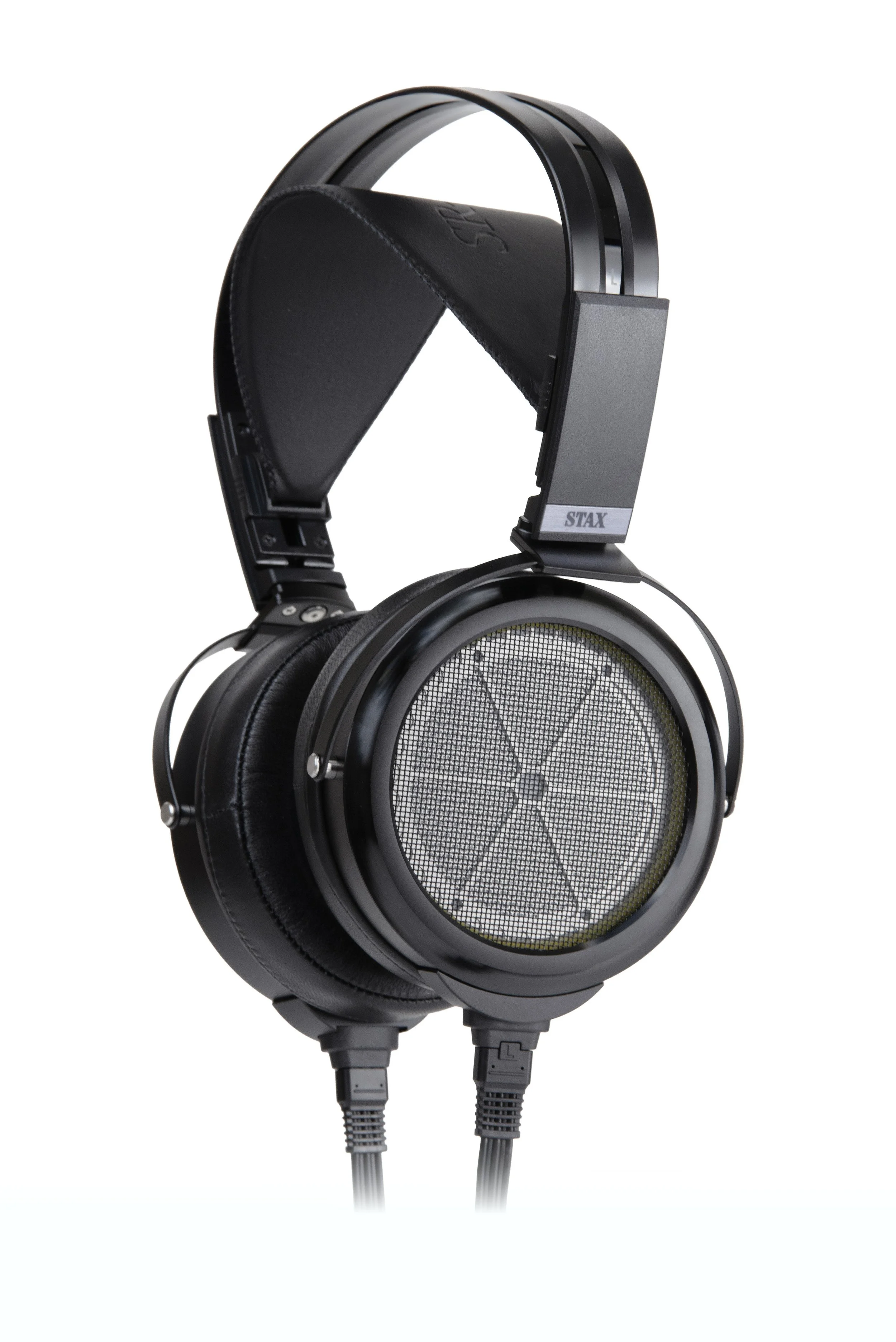

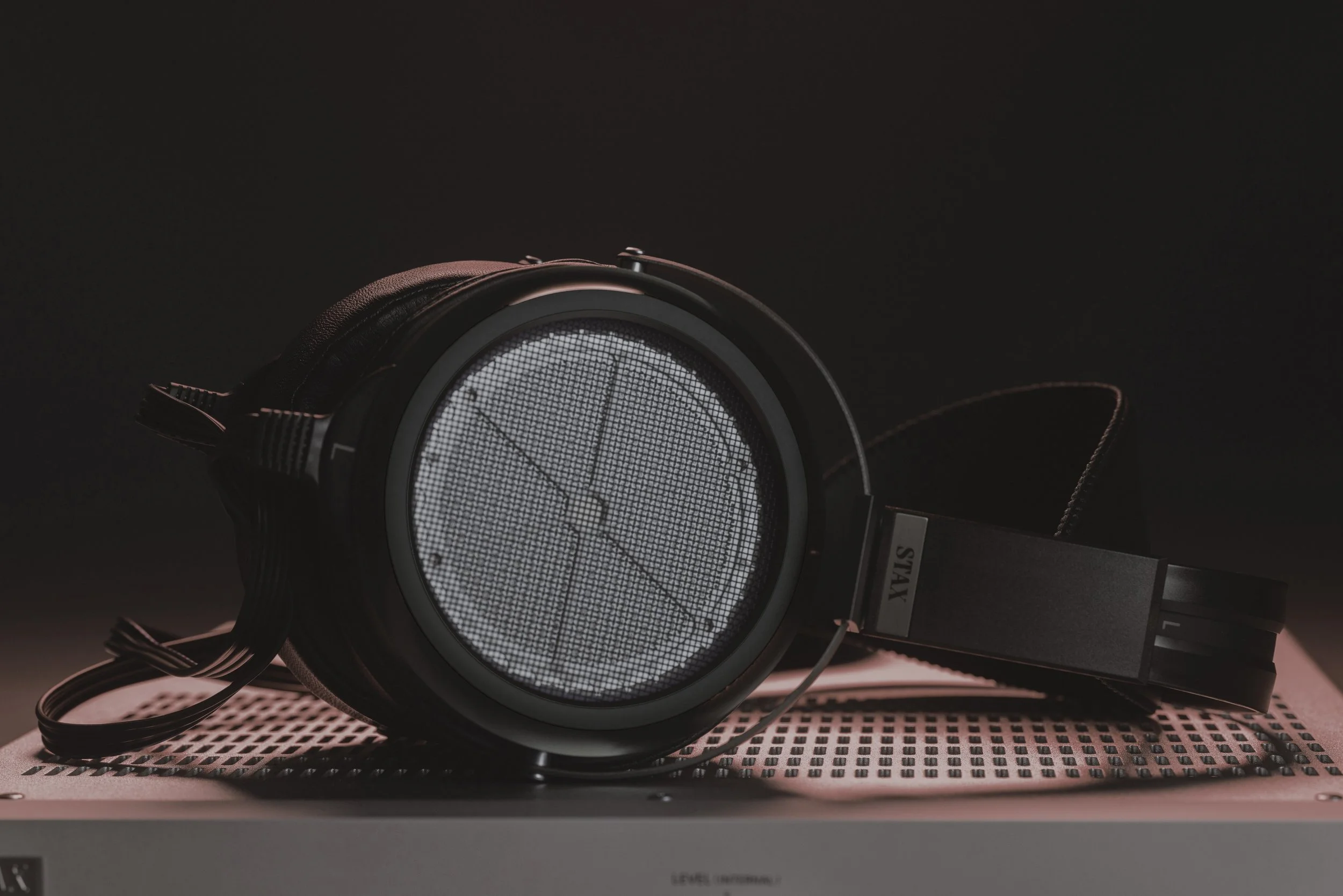

The SR-009, the origin of STAX's current high-end models. Equipped with a large circular sound unit featuring innovative fixed electrodes, this model led the high-end headphone culture for a long time. Production had ceased with the arrival of the new flagship model, but now, in response to numerous requests from fans worldwide, it makes the comeback. With changes to the body color, cable material, and unit case, it is now available at a more accessible price than at its original launch.

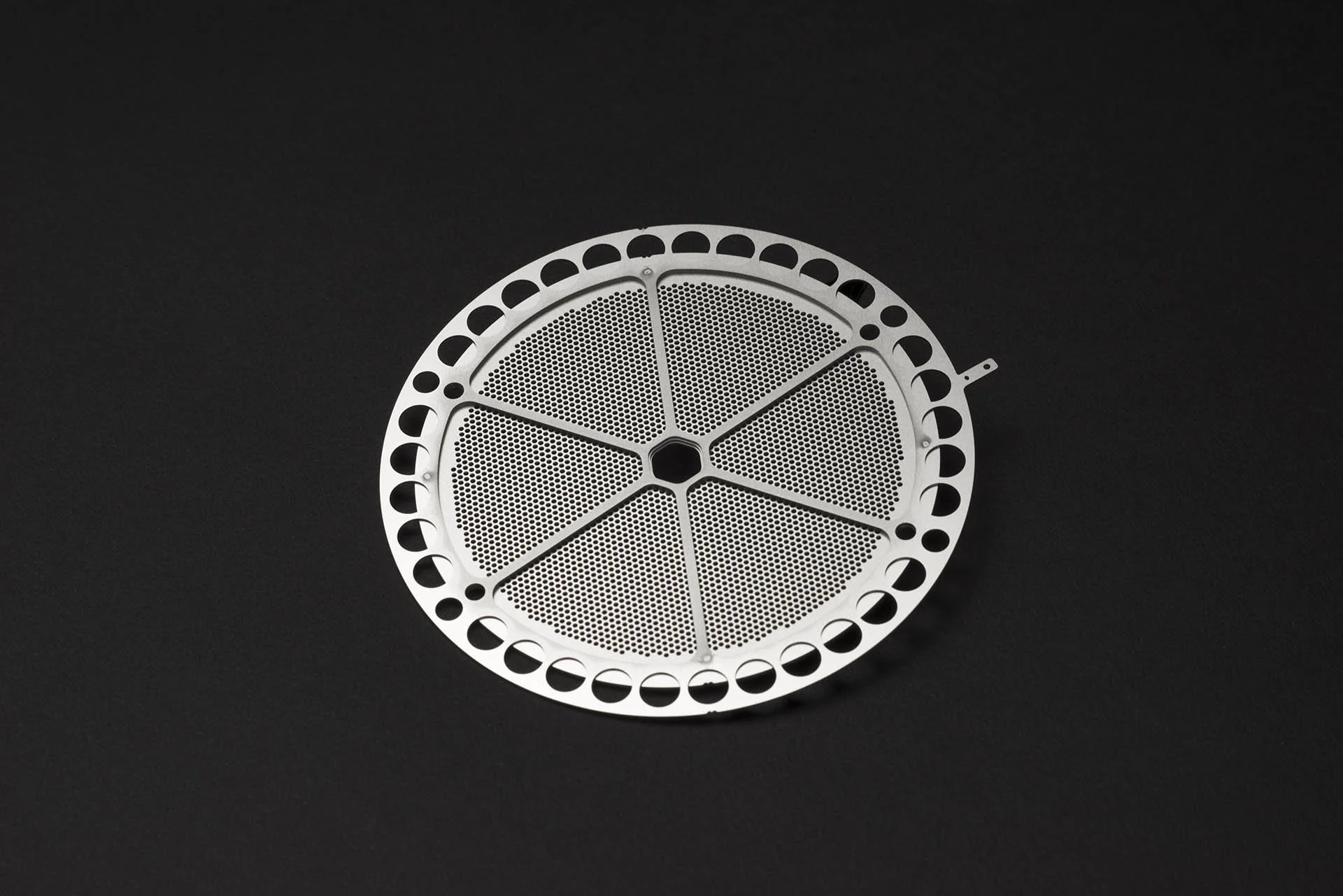

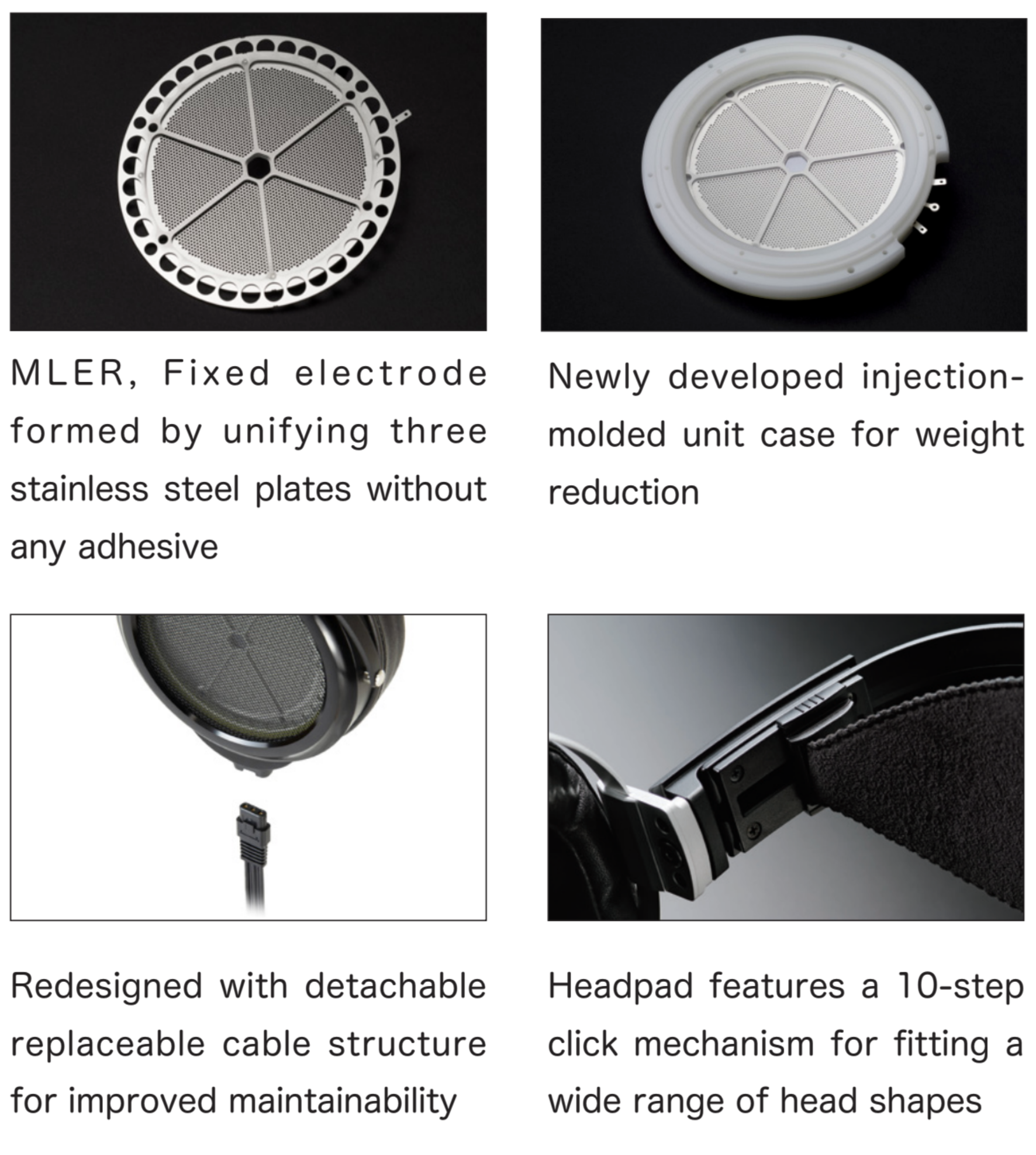

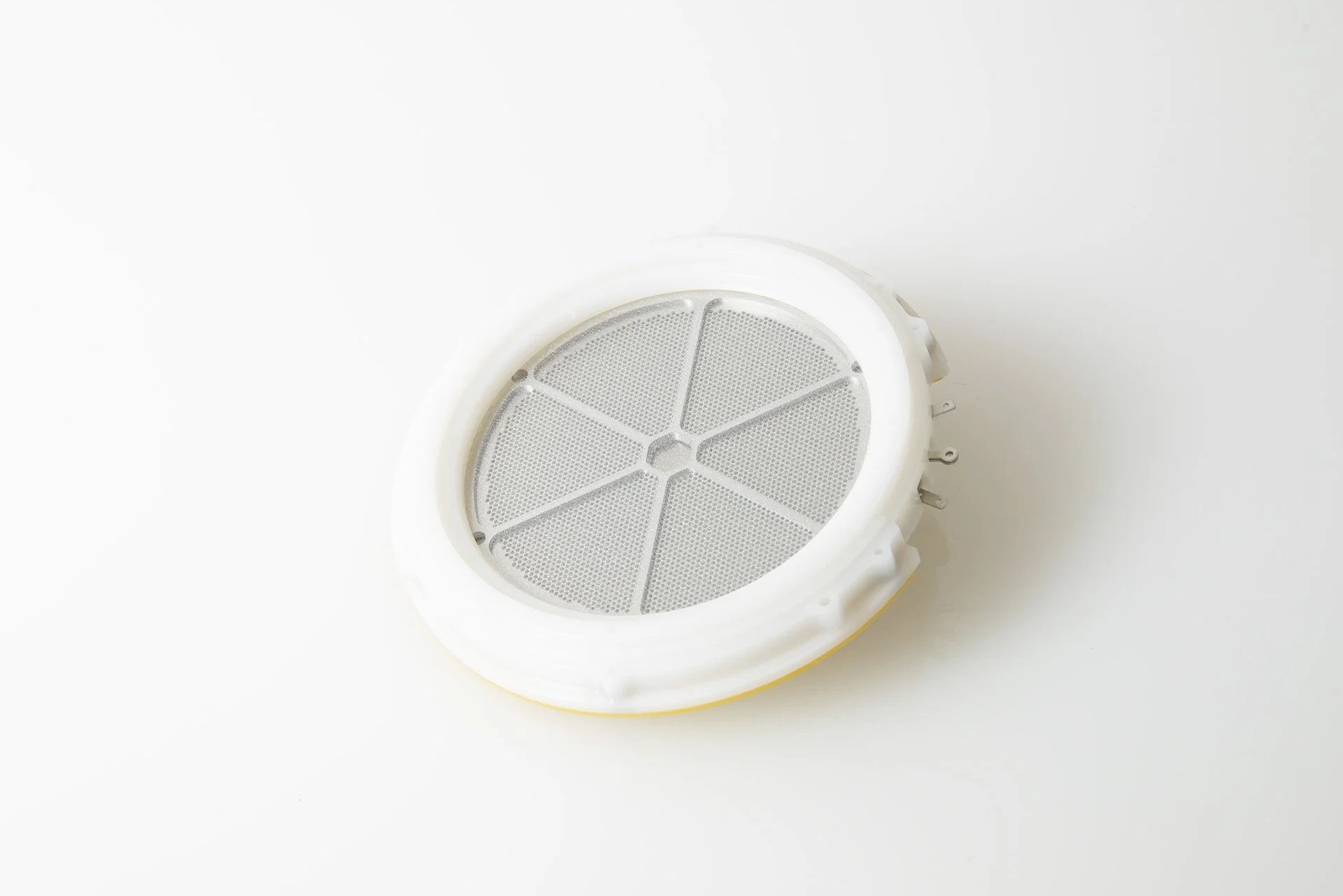

MLER (Multi-Layer Electrode)

The SR-009 (released in 2011) was the catalyst for the current high-end models SR-X9000 and SR-009S. The key technology for high-end models, MLER (Multi-Layer Electrode), originated with this model. Using thermal diffusion bonding technology, which unifies photo-etched metal plates at the atomic level under vacuum conditions, this new fixed electrode achieves exceptional planarity, low resonance, and high sound wave transmission. The SR-009D remains the most affordable option for experiencing the sound of current STAX high-end models.

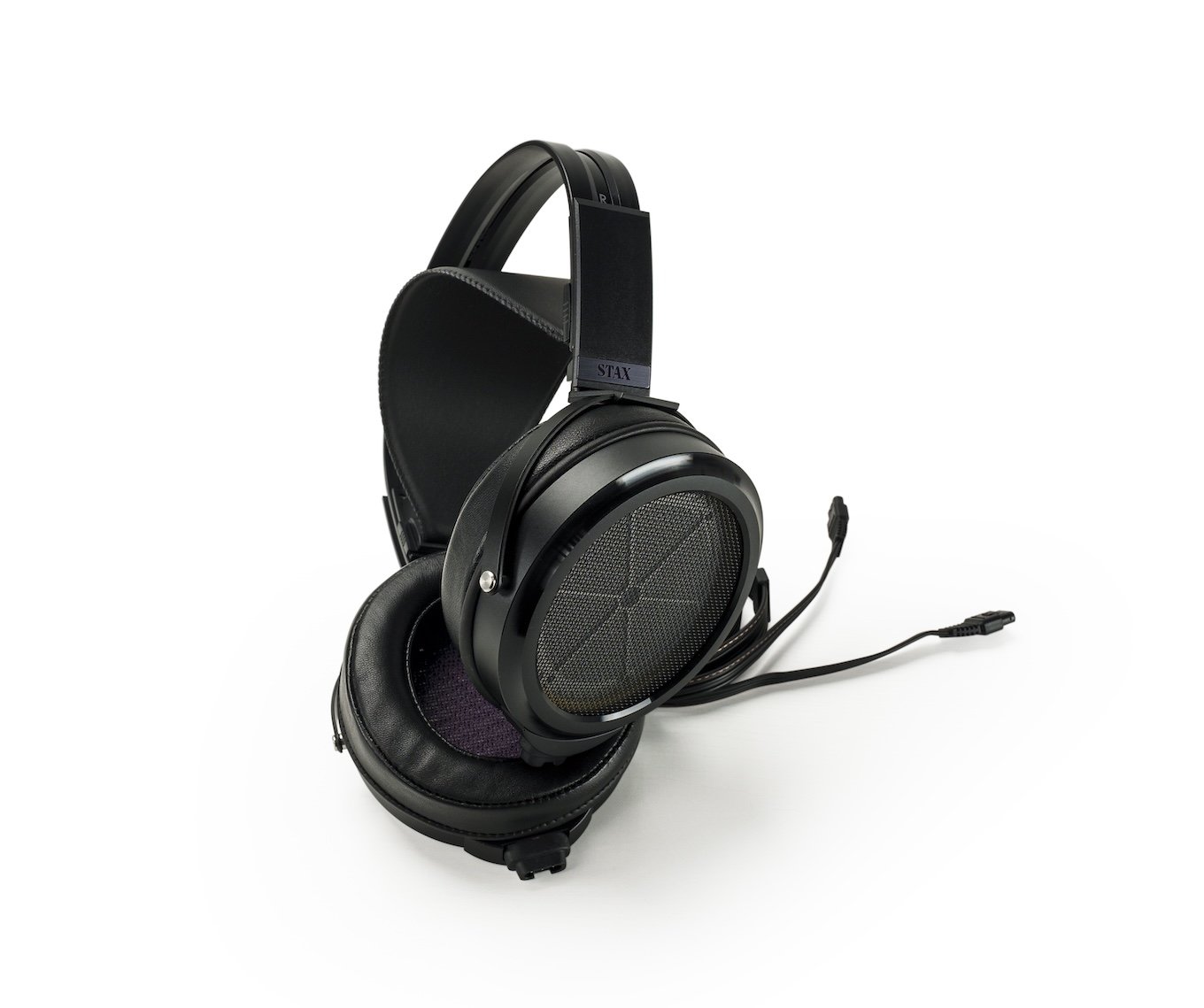

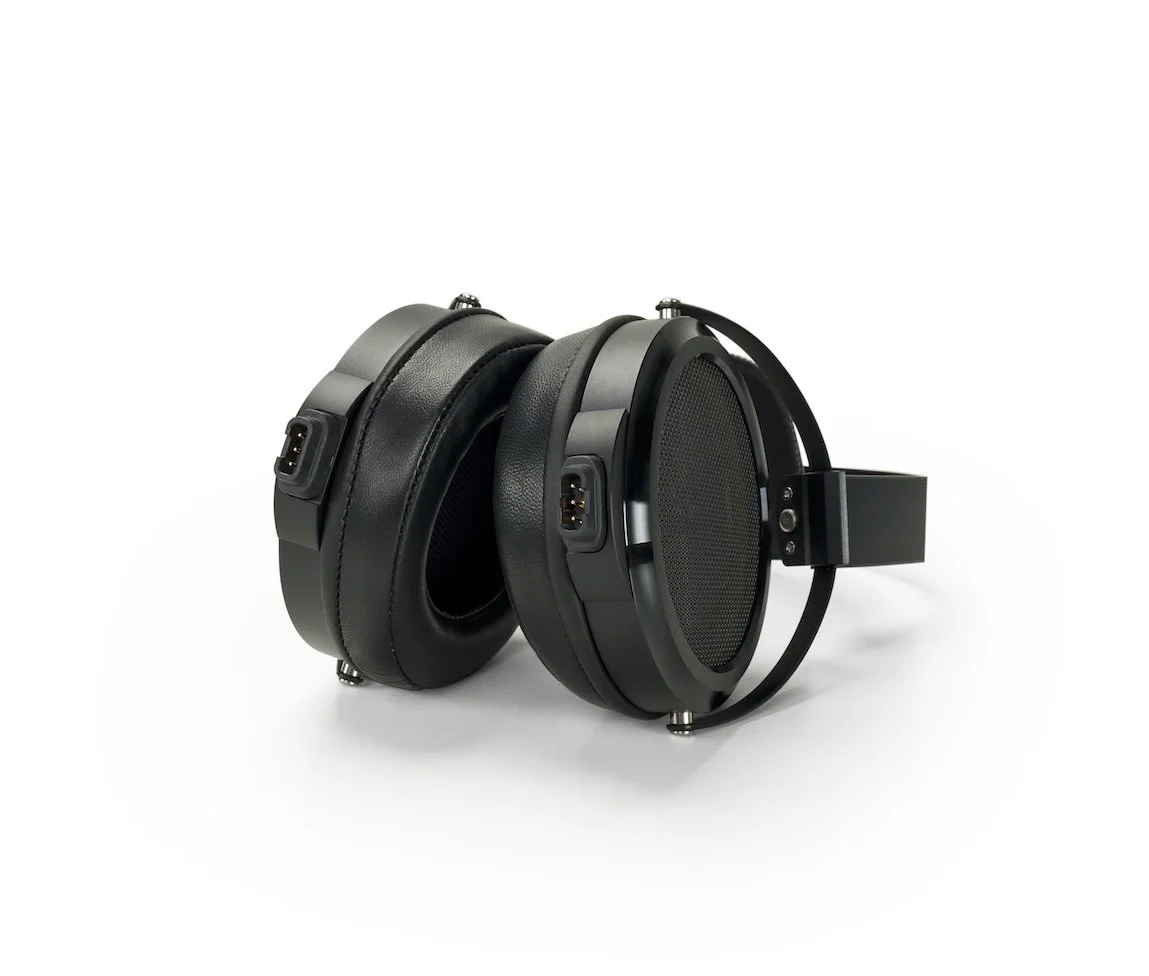

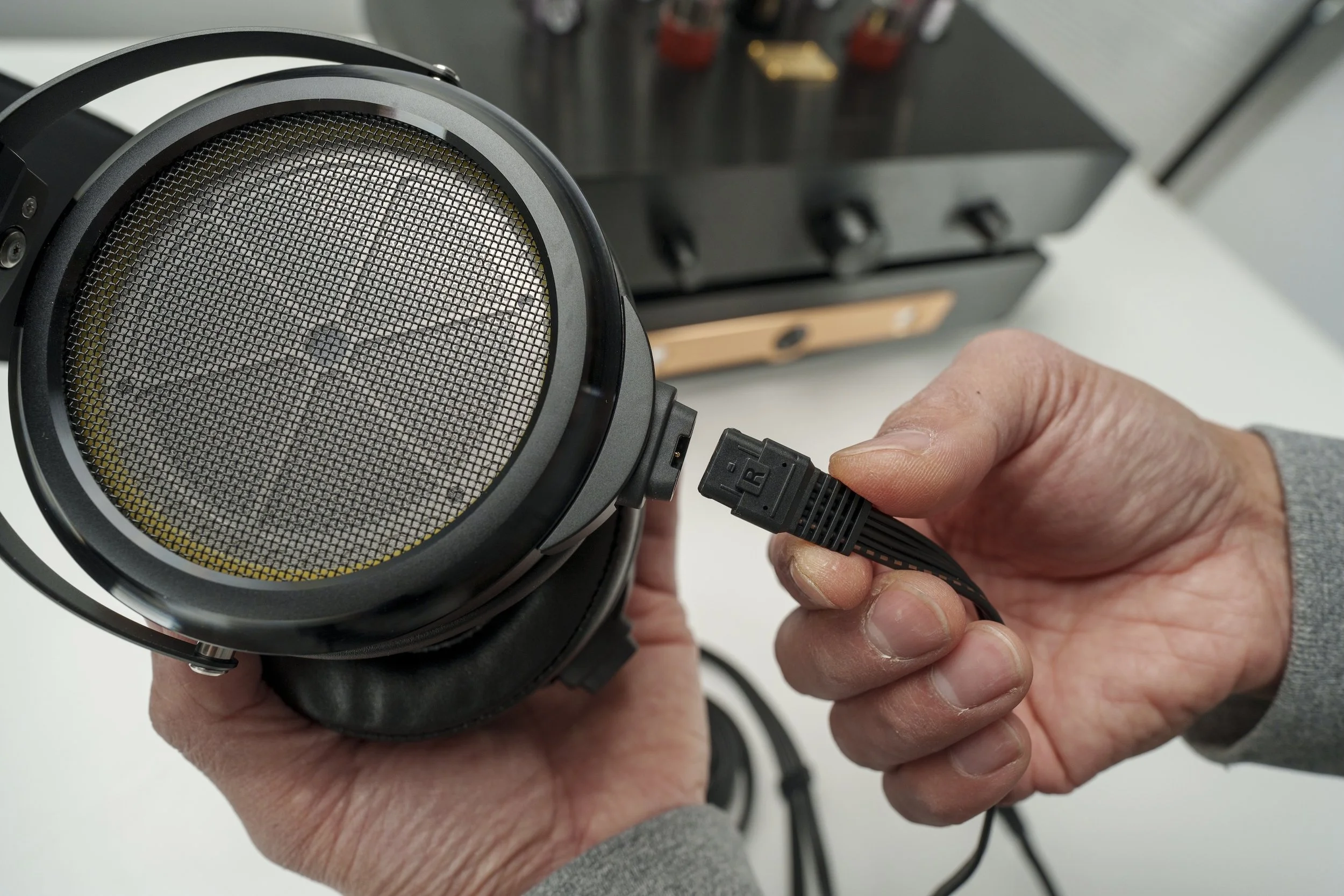

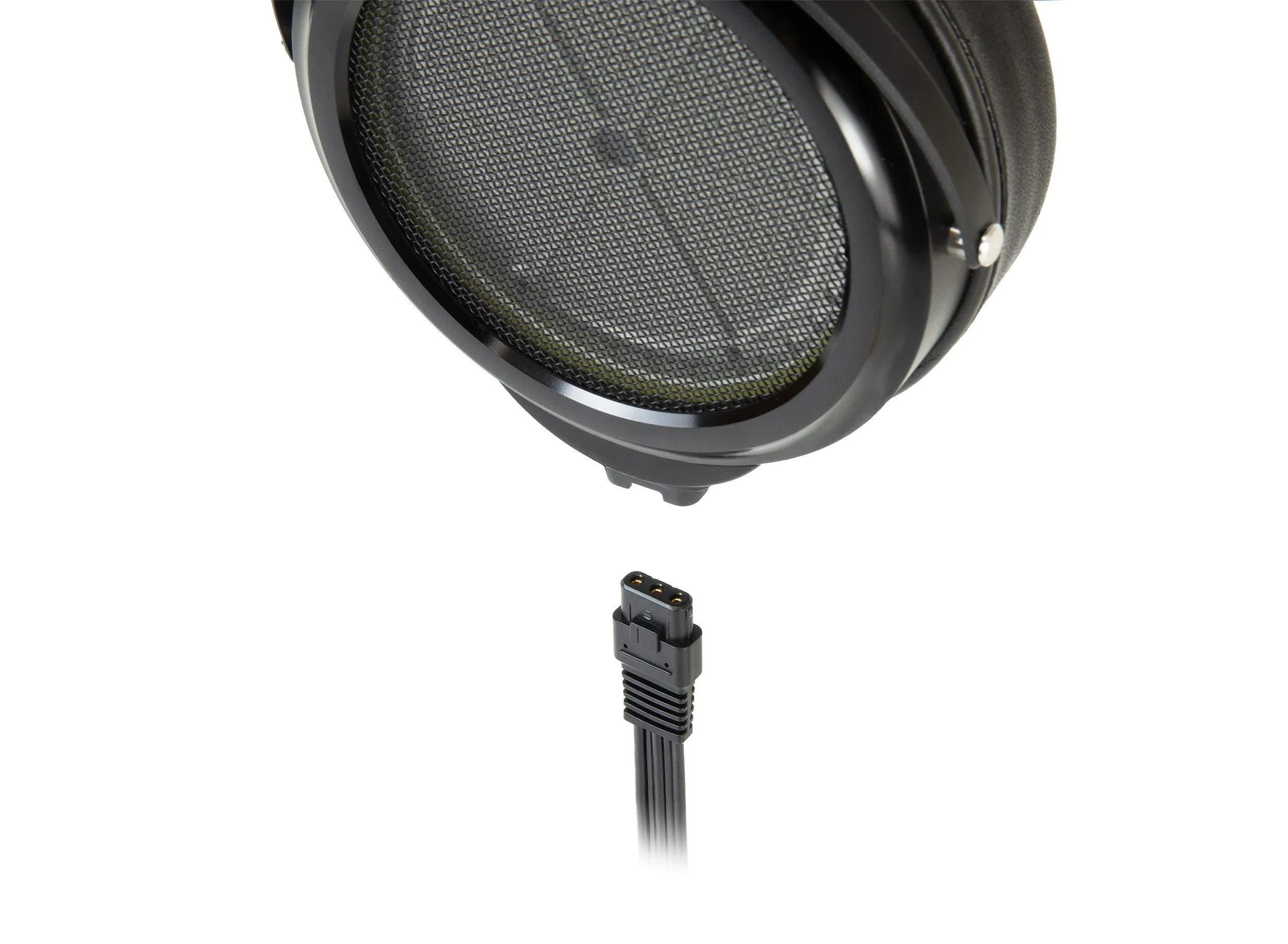

Replaceable Cable Design

SR-009D adopts the replaceable cable structure which is now standard across the current lineup. This enhances usability of the earspeakers by enabling future compatibility with high-quality cables and easy maintenance in case of unexpected cable breakage.

• Type: push-pull electrostatic sound element, open-air type enclosure

• Sound element shape: large round shape

• Frequency response: 5 - 42,000Hz

• Electrostatic capacitance: 110pF

• Impedance: 145k

• Sound pressure sensitivity: 101dB

• Bias voltage: 580V DC

• Attached cable conductor: OFC

• Cable: parallel 6-strand, low-capacity wide cable

• Cable length:2.5m

• Ear pad: genuine sheep leather (skin touching portion), artificial leather (surrounding portion)

• Weight: 452g (ear speaker)

• Made in Japan

• Woo Audio is an authorized reseller

• STAX SR-009D headphone x 1

• Storage box x 1

• Owners manual x 1
